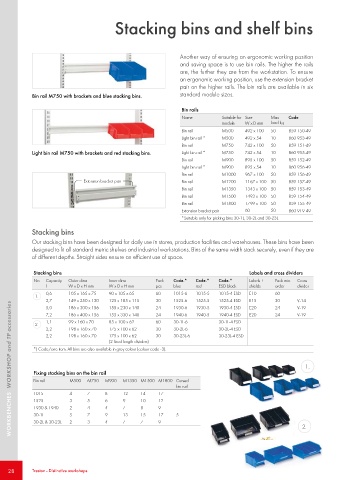

Page 28 - Treston

Stacking bins and shelf bins

Another way of ensuring an ergonomic working position
and saving space is to use bin rails. The higher the rails
are, the further they are from the workstation. To ensure
an ergonomic working position, use the extension bracket
pair on the higher rails. The bin rails are available in six
Bin rail M750 with brackets and blue stacking bins. standard module sizes.

Bin rails
Name Suitable for Size Max Code
module W x D mm load kg
Bin rail M500 492 x 100 50 859 150-49
Light bin rail * M500 492 x 54 10 860 953-49
Bin rail M750 742 x 100 50 859 151-49
Light bin rail M750 with brackets and red stacking bins. Light bin rail * M750 742 x 54 10 860 955-49
Bin rail M900 895 x 100 50 859 152-49
Light bin rail * M900 895 x 54 10 860 956-49
Bin rail M1000 967 x 100 50 859 156-49
Extension bracket pair Bin rail M1200 1167 x 100 50 859 157-49
Bin rail M1350 1343 x 100 50 859 153-49
Bin rail M1500 1493 x 100 50 859 154-49
Bin rail M1800 1799 x 100 50 859 155-49
Extension bracket pair 60 50 860 919-49
*Suitable only for picking bins 30-1L, 30-2L and 30-23L.

Stacking bins
Our stacking bins have been designed for daily use in stores, production facilities and warehouses. These bins have been
designed to fit all standard metric shelves and industrial workstations. Bins of the same width stack securely, even if they are
of different depths. Straight sides ensure an efficient use of space.

Stacking bins Labels and cross dividers
No. Capacity Outer dims Inner dims Pack Code.* Code.* Code.* Labels + Pack min. Cross
l W x D x H mm W x D x H mm pcs blue red ESD black shields order divider
0,6 105 x 165 x 75 90 x 105 x 65 60 1015-6 1015-5 1015-4 ESD E10 60
1.
2,7 149 x 250 x 130 125 x 185 x 115 30 1525-6 1525-5 1525-4 ESD E15 30 V-14
WORKBENCHES WORKSHOP and TP accessories
5,0 186 x 300 x 156 155 x 230 x 140 24 1930-6 1930-5 1930-4 ESD E20 24 V-19
7,2 186 x 400 x 156 155 x 330 x 140 24 1940-6 1940-5 1940-4 ESD E20 24 V-19
1,1 99 x 160 x 70 85 x 100 x 62 60 30-1L-6 30-1L-4 ESD
2.
2,2 198 x 160 x 70 175 x 100 x 62 30 30-2L-6 30-2L-4 ESD
2,2 198 x 160 x 70 175 x 100 x 62 30 30-23L-6 30-23L-4 ESD
(2 fixed length dividers)
*) Code/one item. All bins are also available in grey colour (colour code -3).

1.
Fixing stacking bins on the bin rail
Bin rail M500 M750 M900 M1350 M1500 M1800 Curved
bin rail
1015 4 7 8 12 14 17
1525 3 5 6 9 10 12
1930 & 1940 2 4 4 7 8 9
30-1L 5 7 9 13 15 17 5
30-2L & 30-23L 2 3 4 7 7 9
2.
