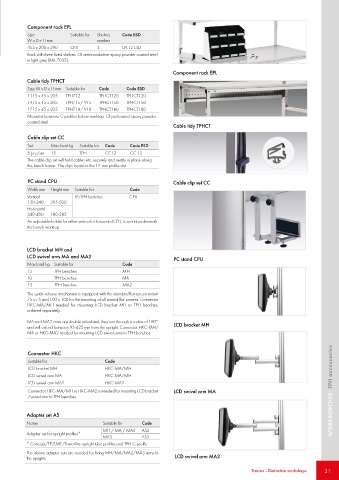

Page 31 - Treston

Component rack EPL
Size Suitable for Shelves Code ESD
W x D x H mm number
455 x 200 x 290 CKV 3 EPL12 ESD
Rack with three fixed shelves. Of semiconductive epoxy powder coated steel
in light grey (RAL 7035).
Component rack EPL
Cable tidy TPHCT
Size W x D x H mm Suitable for Code Code ESD
1115 x 45 x 205 TPH712 TPHCT120 TPHCT120
1415 x 45 x 205 TPH715/ 915 TPHCT150 TPHCT150
1715 x 45 x 205 TPH718/ 918 TPHCT180 TPHCT180
Mounted between C-profiles below worktop. Of perforated epoxy powder
coated steel.
Cable tidy TPHCT
Cable clip set CC
Set Max load kg Suitable for Code Code ESD
5 pcs/set 15 TPH CC12 CC 12
The cable clip set will hold cables etc. securely and neatly in place along
the bench frame. The clips locate in the 12 mm profile slot.

PC stand CPU Cable clip set CC
Width mm Height mm Suitable for Code
Vertical TP/TPH benches CPU
130-240 395-500
Horizontal
340-460 180-285
An adjustable holder for either vertical or horizontal CPU, to mount underneath
the bench worktop.

LCD bracket MH and
LCD swivel arm MA and MA2 PC stand CPU
Max load kg Suitable for Code
15 TPH benches MH
10 TPH benches MA
15 TPH benches MA2
The quick-release mechanism is equipped with the standard flat-screen mount
75 x 75 and 100 x 100 for the mounting of all normal flat-screens. Connector
HKC-MA/MH needed for mounting LCD bracket MH to TPH benches,
ordered separately.
MA and MA2 arms are double articulated, they turn through a radius of 180° LCD bracket MH
and will extend between 95-425 mm from the upright. Connector HKC-MH/
MA or HKC-MA2 needed for mounting LCD swivel arms to TPH benches.

Connector HKC
Suitable for Code
LCD bracket MH HKC-MA/MH
LCD swivel arm MA HKC-MA/MH
LCD swivel arm MA2 HKC-MA2
Connector HKC-MA/MH or HKC-MA2 is needed for mounting LCD bracket LCD swivel arm MA WORKBENCHES TPH accessories
/swivel arm to TPH benches.

Adapter set AS
Name Suitable for Code
MH / MA / MA2 AS2
Adapter set for upright profiles*
MA3 AS3
* Concept/TP/LMT/Towerline upright tube profiles and TPH C-profile
The above adapter sets are needed for fixing MH/MA/MA2/MA3 arms to
the uprights. LCD swivel arm MA2
Treston - Distinctive workshops 31
