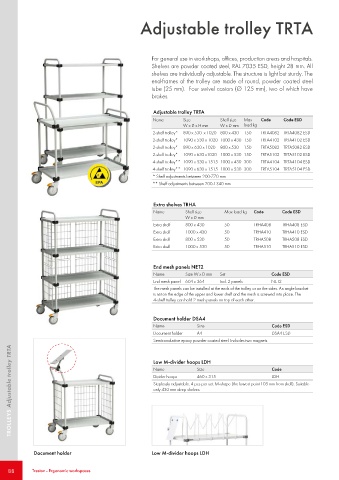

Page 88 - Treston

Adjustable trolley TRTA

For general use in workshops, offices, production areas and hospitals.
Shelves are powder coated steel, RAL 7035 ESD, height 28 mm. All
shelves are individually adjustable. The structure is light but sturdy. The
end-frames of the trolley are made of round, powder coated steel
tube (25 mm). Four swivel castors (Ø 125 mm), two of which have
brakes.

Adjustable trolley TRTA
Name Size Shelf size Max Code Code ESD
W x D x H mm W x D mm load kg
2-shelf trolley* 890 x 530 x 1020 800 x 430 150 TRTA4082 TRTA4082 ESD
2-shelf trolley* 1090 x 530 x 1020 1000 x 430 150 TRTA4102 TRTA4102 ESD
2-shelf trolley* 890 x 630 x 1020 800 x 530 150 TRTA5082 TRTA5082 ESD
2-shelf trolley* 1090 x 630 x1020 1000 x 530 150 TRTA5102 TRTA5102 ESD
4-shelf trolley** 1090 x 530 x 1515 1000 x 430 300 TRTA4104 TRTA4104 ESD
4-shelf trolley** 1090 x 630 x 1515 1000 x 530 300 TRTA5104 TRTA5104 ESD
* Shelf adjustments between 200-770 mm
** Shelf adjustments between 200-1340 mm

Extra shelves TRHA
Name Shelf size Max load kg Code Code ESD
W x D mm
Extra shelf 800 x 430 50 TRHA408 TRHA408 ESD
Extra shelf 1000 x 430 50 TRHA410 TRHA410 ESD
Extra shelf 800 x 530 50 TRHA508 TRHA508 ESD
Extra shelf 1000 x 530 50 TRHA510 TRHA510 ESD

End mesh panels NET2
Name Size W x D mm Set Code ESD
End mesh panel 604 x 364 Incl. 2 panels NET2
The mesh panels can be installed at the ends of the trolley or on the sides. An angle bracket
is set on the edge of the upper and lower shelf and the mesh is screwed into place. The
4-shelf trolley can hold 2 mesh panels on top of each other.

Document holder DSA4
Name Size Code ESD
Document holder A4 DSA4 ESD
Semiconductive epoxy powder coated steel. Includes two magnets.
TROLLEYS Adjustable trolley TRTA Name Size Code

Low M-divider hoops LDH

460 x 315
LDH
Divider hoops
Steplessly adjustable. 4 pcs per set. M-shape (the lowest point 105 mm from shelf). Suitable
only 430 mm deep shelves.

Document holder Low M-divider hoops LDH

88 Treston - Ergonomic workspaces
