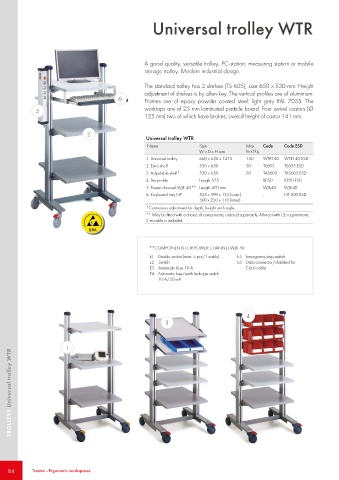

Page 84 - Treston

Universal trolley WTR

A good quality, versatile trolley, PC-station, measuring station or mobile
storage trolley. Modern industrial design.

The standard trolley has 3 shelves (TS 605), size 650 x 530 mm. Height
adjustment of shelves is by allen-key. The vertical profiles are of aluminium.
6 Frames are of epoxy powder coated steel: light grey RAL 7035. The

5 worktops are of 25 mm laminated particle board. Four swivel castors (Ø
125 mm) two of which have brakes, overall height of castor 141 mm.

2
Universal trolley WTR
Name Size Max Code Code ESD
W x D x H mm load kg
1. Universal trolley 660 x 650 x 1415 150 WTR140 WTR140 ESD
2. Extra shelf 530 x 650 50 TS605 TS605 ESD
3. Adjustable shelf* 530 x 650 50 TAS605 TAS605 ESD
4. Bin profile Length 525 BP50 BP50 ESD
5. Power channel WJK 40** Length 470 mm WJK40 WJK40
6. Keyboard tray NT 525 x 399 x 133 (outer) - NT 500 ESD
500 x 250 x 110 (inner)
*Continuous adjustment for depth, height and angle.
** May be fitted with a choice of components, ordered separately. All meet with CE requirements.
3 m cable is included.

**COMPONENTS FOR POWER CHANNEL WJK 40
E1 Double socket (max. 5 pcs/1 cable) E5 Emergency-stop-switch
E2 Switch E6 Data connector/shielded for
E3 Automatic fuse 10 A Cat.6 cable
E4 Automatic fuse/earth leakage switch
10 A/30 mA

4
3

1 1
TROLLEYS Universal trolley WTR
