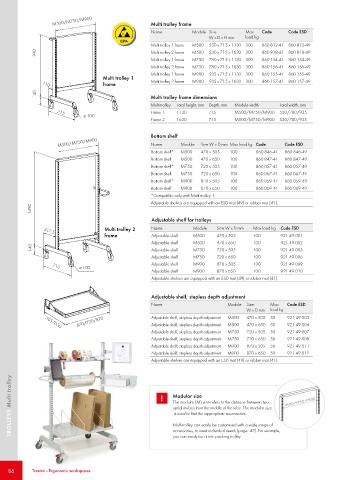

M500/M750/M900 Multi trolley frame

Name Module Size Max Code Code ESD
W x D x H mm load kg
Multi trolley 1 frame M500 530 x 715 x 1130 300 860 812-41 860 812-49
990 Multi trolley 2 frame M500 530 x 715 x 1630 300 860 818-41 860 818-49
Multi trolley 1 frame M750 780 x 715 x 1130 300 860 154-41 860 154-49
Multi trolley 2 frame M750 780 x 715 x 1630 300 860 156-41 860 156-49
Multi trolley 1 frame M900 935 x 715 x 1130 300 860 155-41 860 155-49
Multi trolley 1
frame Multi trolley 2 frame M900 935 x 715 x 1630 300 860 157-41 860 157-49
110
140 Multi trolley frame dimensions
Multi trolley Total height, mm Depth, mm Module width Total width, mm
715 Frame 1 1130 715 M500/M750/M900 530/780/935
ø 100
Frame 2 1630 715 M500/M750/M900 530/780/935

Bottom shelf
M500/M750/M900 Name Module Size W x D mm Max load kg Code Code ESD

Bottom shelf* M500 470 x 505 100 860 846-41 860 846-49
Bottom shelf M500 470 x 650 100 860 847-41 860 847-49
Bottom shelf* M750 720 x 505 100 860 057-41 860 057-49
Bottom shelf M750 720 x 650 100 860 067-41 860 067-49
Bottom shelf* M900 870 x 505 100 860 059-41 860 059-49
Bottom shelf M900 870 x 650 100 860 069-41 860 069-49
*Compatible only with Multi trolley 1.
Adjustable shelves are equipped with an ESD mat (49) or rubber mat (41).
1490

Adjustable shelf for trolleys
Multi trolley 2 Name Module Size W x D mm Max load kg Code ESD
317,5
frame Adjustable shelf M500 470 x 505 100 921 49 001
Adjustable shelf M500 470 x 650 100 921 49 002
140 Adjustable shelf M750 720 x 505 100 921 49 005
Adjustable shelf M750 720 x 650 100 921 49 006
Adjustable shelf M900 870 x 505 100 921 49 009
715
ø 100
Adjustable shelf M900 870 x 650 100 921 49 010
Adjustable shelves are equipped with an ESD mat (49) or rubber mat (41).

Adjustable shelf, stepless depth adjustment
Name Module Size Max Code ESD
W x D mm load kg
470/720/870 Adjustable shelf, stepless depth adjustment M500 470 x 505 50 921 49 003
50
470 x 650
921 49 004
Adjustable shelf, stepless depth adjustment M500
505/650
Adjustable shelf, stepless depth adjustment M750 720 x 505 50 921 49 007
Adjustable shelf, stepless depth adjustment M750 720 x 650 50 921 49 008
Adjustable shelf, stepless depth adjustment M900 870 x 505 50 921 49 011
Adjustable shelf, stepless depth adjustment M900 870 x 650 50 921 49 012
Adjustable shelves are equipped with an ESD mat (49) or rubber mat (41).
TROLLEYS Multi trolley ! Modular size

The modular (M) size refers to the distance between two
upright tubes from the middle of the tube. The modular size
is used to find the appropriate accessories.
Multi trolley can easily be customised with a wide range of
accessories, to meet individual needs (page 42). For example,
you can easily turn it into packing trolley.
