P. 90

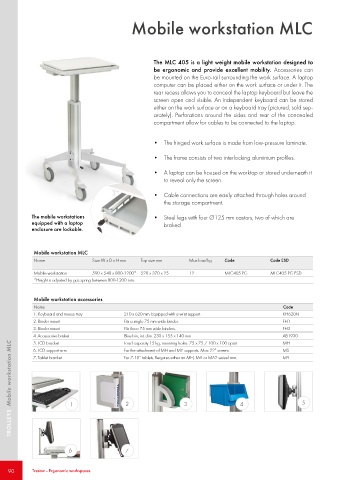

Mobile workstation MLC
The MLC 405 is a light weight mobile workstation designed to
be ergonomic and provide excellent mobility. Accessories can
be mounted on the Euro-rail surrounding the work surface. A laptop
computer can be placed either on the work surface or under it. The
rear recess allows you to conceal the laptop keyboard but leave the
screen open and visible. An independent keyboard can be stored
either on the work surface or on a keyboard tray (pictured, sold sep-
arately). Perforations around the sides and rear of the concealed
compartment allow for cables to be connected to the laptop.
• The hinged work surface is made from low-pressure laminate.
• The frame consists of two interlocking aluminium profiles.
• A laptop can be housed on the worktop or stored underneath it
to reveal only the screen.
• Cable connections are easily attached through holes around
the storage compartment.
The mobile workstations • Steel legs with four Ø125 mm castors, two of which are
equipped with a laptop braked.
enclosure are lockable.
Mobile workstation MLC
Name Size W x D x H mm Top size mm Max load kg Code Code ESD
Mobile workstation 590 x 540 x 800-1200* 520 x 370 x 25 12 MLC405 PG MLC405 PG ESD
*Height is adjusted by gas spring between 800-1200 mm.
Mobile workstation accessories
Name Code
1. Keyboard and mouse tray 210 x 620 mm. Equipped with a wrist support. KH620N
2. Binder mount Fits a single 75 mm wide binder. FH1
3. Binder mount Fits three 75 mm wide binders. FH3
4. Accessories basket Blue bin, int. dim. 230 x 155 x 140 mm AB1930
Load capacity 15 kg, mounting holes 75 x 75 / 100 x 100 apart
TROLLEYS Mobile workstation MLC 1 2 3 4 5
5. LCD bracket
MH
MS
6. LCD support arm
For the attachment of MH and MY supports. Max 22” screen.
MY
7. Tablet bracket
For 7-10” tablets. Requires either an MH, MA or MA2 swivel arm.
6 7
90 Treston - Ergonomic workspaces
