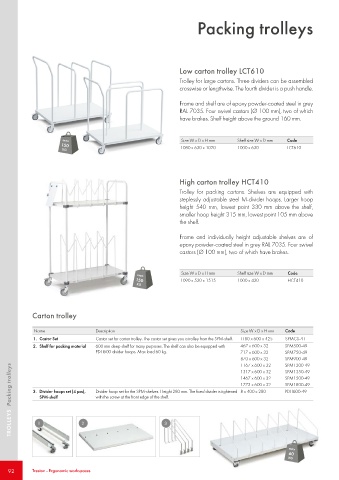

Page 92 - Treston

Packing trolleys

Low carton trolley LCT610

Trolley for large cartons. Three dividers can be assembled
crosswise or lengthwise. The fourth divider is a push handle.

Frame and shelf are of epoxy powder-coated steel in grey
RAL 7035. Four swivel castors (Ø 100 mm), two of which
have brakes. Shelf height above the ground 160 mm.

max Size W x D x H mm Shelf size W x D mm Code
150
KG 1080 x 630 x 1020 1000 x 630 LCT610

High carton trolley HCT410
Trolley for packing cartons. Shelves are equipped with
steplessly adjustable steel M-divider hoops. Larger hoop
height 540 mm, lowest point 330 mm above the shelf,
smaller hoop height 315 mm, lowest point 105 mm above
the shelf.

Frame and individually height adjustable shelves are of
epoxy powder-coated steel in grey RAL 7035. Four swivel
castors (Ø 100 mm), two of which have brakes.

Size W x D x H mm Shelf size W x D mm Code
max
150 1090 x 530 x 1515 1000 x 430 HCT410
KG

Carton trolley

Name Description Size W x D x H mm Code
1. Castor Set Castor set for carton trolley. The castor set gives you a trolley from the SPM-shelf. 1180 x 600 x 425 SPMCS-41
2. Shelf for packing material 600 mm deep shelf for many purposes. The shelf can also be equipped with 467 x 600 x 32 SPM500-49
PDH600 divider hoops. Max load 60 kg. 717 x 600 x 32 SPM750-49
870 x 600 x 32 SPM900-49
1167 x 600 x 32
SPM1200-49
TROLLEYS Packing trolleys 3. Divider hoops set (4 pcs), Divider hoop set for the SPM-shelves. Height 280 mm. The fixed divider is tightened 8 x 400 x 280 SPM1800-49
SPM1350-49
1317 x 600 x 32
1467 x 600 x 32
SPM1500-49
1773 x 600 x 32
PDH600-49
SPM-shelf
with the screw at the front edge of the shelf.
3
2
1

max
60
KG
92 Treston - Ergonomic workspaces
