Recycling material trolley PRMT
The recycling trolleys are ideal for placing underneath or beside the packing bench. The bins are adjustable in angle for ease
of use! The trolley comes with four swivel castors, two with brakes. Available in single and double version.

Size W x D x H mm Code
350 x 625 x 765 PRMT 1
680 x 625 x 765 PRMT 2
5 9 10
7

11

6

8
12

4

3

2

1

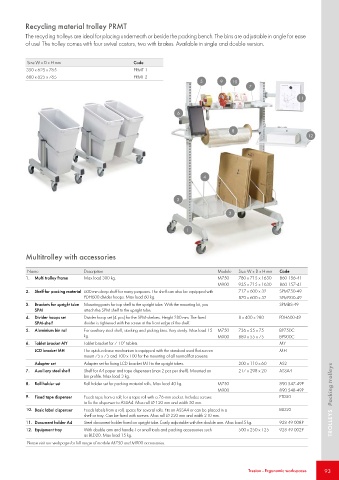

Multitrolley with accessories

Name Description Module Size W x D x H mm Code
1. Multi trolley frame Max load 300 kg. M750 780 x 715 x 1630 860 156-41
M900 935 x 715 x 1630 860 157-41
2. Shelf for packing material 600 mm deep shelf for many purposes. The shelf can also be equipped with 717 x 600 x 32 SPM750-49
PDH600 divider hoops. Max load 60 kg. 870 x 600 x 32 SPM900-49
3. Brackets for upright tube Mounting parts for top shelf to the upright tube. With the mounting kit, you SPMBS-49
SPM attach the SPM shelf to the upright tube.
4. Divider hoops set Divider hoop set (4 pcs) for the SPM-shelves. Height 280 mm. The fixed 8 x 400 x 280 PDH600-49
SPM-shelf divider is tightened with the screw at the front edge of the shelf.
5. Aluminium bin rail For auxiliary steel shelf, stacking and picking bins. Very sturdy. Max load 15 M750 736 x 55 x 75 BP750C
kg. M900 889 x 55 x 75 BP900C
6. Tablet bracket MY Tablet bracket for 7-10“ tablets. MY
LCD bracket MH The quick-release mechanism is equipped with the standard used flat-screen MH
mount 75 x 75 and 100 x 100 for the mounting of all normal flat screens.
Adapter set Adapter set for fixing LCD bracket MH to the upright tubes. 200 x 110 x 60 AS2
7. Auxiliary steel shelf Shelf for A4 paper and tape dispensers (max 2 pcs per shelf). Mounted on 217 x 298 x 20 ASSA4
bin profile. Max load 3 kg.
8. Roll holder set Roll holder set for packing material rolls. Max load 40 kg. M750 890 547-49P
M900 890 548-49P
9. Fixed tape dispenser Feeds tape from a roll; for a tape roll with a 76-mm socket. Includes screws FTD50
to fix the dispenser to ASSA4. Max roll Ø 120 mm and width 50 mm. TROLLEYS Packing trolleys
10. Basic label dispenser Feeds labels from a roll, space for several rolls. Fits on ASSA4 or can be placed in a BLD20
shelf or tray. Can be fixed with screws. Max roll Ø 220 mm and width 210 mm.
11. Document holder A4 Steel document holder fixed on upright tube. Easily adjustable with the double arm. Max load 5 kg. 928 49 008P
12. Equipment tray With double arm and handle. For small tools and packing accessories such 500 x 250 x 125 928 49 002P
as BLD20. Max load 15 kg.
Please visit our webpage for full range of module M750 and M900 accessories.
