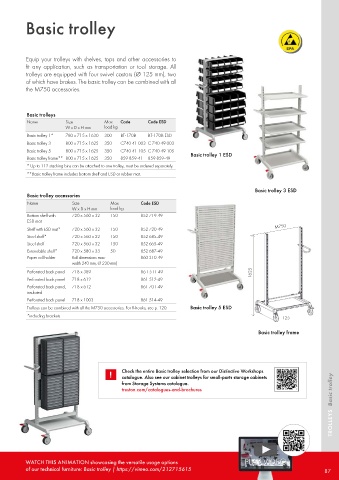

Basic trolley

Equip your trolleys with shelves, tops and other accessories to
fit any application, such as transportation or tool storage. All
trolleys are equipped with four swivel castors (Ø 125 mm), two
of which have brakes. The basic trolley can be combined with all
the M750 accessories.

Basic trolleys
Name Size Max Code Code ESD
W x D x H mm load kg
Basic trolley 1* 780 x 715 x 1630 300 BT-170B BT-170B ESD
Basic trolley 3 800 x 715 x 1625 350 C740 41 003 C 740 49 003
Basic trolley 5 800 x 715 x 1625 350 C740 41 105 C 740 49 105
Basic trolley 1 ESD
Basic trolley frame** 800 x 715 x 1625 350 859 859-41 859 859-49
* Up to 112 stacking bins can be attached to one trolley, must be ordered separately.
**Basic trolley frame includes bottom shelf and ESD or rubber mat.

Basic trolley 3 ESD
Basic trolley accessories
Name Size Max Code ESD
W x D x H mm load kg
Bottom shelf with 720 x 560 x 32 150 852 719-49
ESD mat
M750
Shelf with ESD mat* 720 x 560 x 32 150 852 720-49
Steel shelf* 720 x 560 x 32 150 852 685-49
Steel shelf 720 x 560 x 32 150 852 665-49
Extendable shelf* 720 x 580 x 33 50 852 687-49
Paper roll holder Roll dimensions max: 860 310-49
width 240 mm, Ø 230 mm)
Perforated back panel 718 x 389 861 511-49 1625
Perforated back panel 718 x 612 861 512-49
Perforated back panel, 718 x 612 861 701-49
insulated
Perforated back panel 718 x 1003 861 514-49
Trolleys can be combined with all the M750 accessories. For R-hooks, see p. 120. Basic trolley 5 ESD
*including brackets
125
Basic trolley frame

! Check the entire Basic trolley selection from our Distinctive Workshops
TROLLEYS Basic trolley
catalogue. Also see our cabinet trolleys for small-parts storage cabinets
from Storage Systems catalogue.
treston.com/catalogues-and-brochures

WATCH THIS ANIMATION showcasing the versatile usage options
