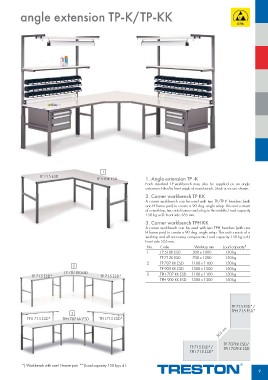

angle extension TP-K/TP-KK

TP 715 ESD 1 1. Angle extension TP -K
TP 510K ESD
Each standard TP-workbench may also be supplied as an angle
extension. Fitted to front angle of main bench. Stock sizes are shown.

2. Corner workbench TP KK

A corner workbench can be used with two TP/TP-K benches (with
one H-frame pair) to create a 90 deg. angle setup. This unit consists
of a worktop, two side frames and a leg in the middle. Load capacity
150 kg u.d.l. Front side 565 mm.

3. Corner workbench TPH KK

A corner workbench can be used with two TPH benches (with one
H-frame pair) to create a 90 deg. angle setup. This unit consists of a
worktop and all necessary components. Load capacity 150 kg u.d.l.
Front side 565 mm.

No. Code Worktop mm Load capacity*

1 TP 510K ESD 500 x 1000 150 kg

TP 712K ESD 700 x 1200 150 kg

2 2 TP 707 KK ESD 1100 x 1100 150 kg
TP 707 KK ESD
TP 909 KK ESD 1300 x 1300 150 kg

TP 715 ESD* TP 715 ESD* 3 TPH 707 KK ESD 1100 x 1100 150 kg

TPH 909 KK ESD 1300 x 1300 150 kg

3 TP 715 ESD*/
TPH 707 KK ESD TPH 715 ESD*

TPH 715 ESD* TPH 715 ESD*

565 mm

TP 715 ESD*/ TP 707KK ESD/
TPH 715 ESD* TPH 707KK ESD

*) Workbench with one H-frame pair **)Load capacity 150 kg u.d.l.
