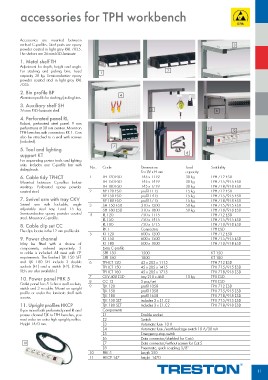

Page 11 - Treston ESD

accessories for TPH workbench

Accessories are mounted between 1 3
vertical C-profiles. Steel parts are epoxy 2
powder coated in light grey RAL 7035. 4
The shelves are 26 mm ESD-laminate 56
7 11 9
1. Metal shelf TH
No.. Code 8
Adjustment for depth, height and angle.
For stacking and picking bins. Load 1 TH 120 ESD Dimensions Load Suitability
capacity 30 kg. Semiconductive epoxy TH 150 ESD D x W x H mm capacity
powder coated steel in light grey RAL TH 180 ESD TPH 712 ESD
7035. 145 x 1119 30 kg TPH 715/915 ESD
2 BP 120 ESD 145 x 1419 30 kg TPH 718/918 ESD
2. Bin profile BP BP 150 ESD 145 x 1719 30 kg TPH 712 ESD
BP 180 ESD profil 1115 15 kg TPH 715/915 ESD
Aluminium profile for stacking/picking bins. profil 1415 15 kg TPH 718/918 ESD
3 SH 150 ESD profil 1715 15 kg TPH 715/915 ESD
3. Auxiliary shelf SH SH 180 ESD 310 x 1500 50 kg TPH 718/918 ESD
310 x 1800 50 kg TPH 712 ESD
26 mm ESD-laminate shelf. 4 RL 120 750 x 1115 TPH 715/915 ESD
RL 150 750 x 1415 TPH 718/918 ESD
4. Perforated panel RL RL 180 750 x 1715 TPH ESD
RK 1 Connectors TPH 712 ESD
Robust, perforated steel panel. 9 mm 600 x 1200 TPH 715/915 ESD
perforations at 38 mm centres. Mount on 5 KT 120 600 x 1500 TPH 718/918 ESD
TPH-benches with connectors RK 1. Can KT 150 600 x 1800
also be attached to a wall with screws KT 180
(included). Extra C-profile 1500 15 kg KT 150
SPR 150 1800 KT 180
5. Tool and lighting SPR 180 45 x 205 x 1115 TPH 712 ESD
support KT 45 x 205 x 1415 TPH 715/915 ESD
6 TPHCT 120 45 x 205 x 1715 TPH 718/918 ESD
For suspending power tools and lighting TPHCT 150 tray 210 x 460 TPH ESD
units. Includes one C-profile bar with TPHCT 180 5 pcs/set TPH ESD
sliding hook. profil 1058 TPH 712 ESD
7 CKV 400 ESD profil 1358 TPH 715/915 ESD
6. Cable tidy TPHCT 8 CC 12 profil 1658 TPH 718/918 ESD
9 TJK 120 includes 3 x E1, E2 TPH 715/915 ESD
Mounted between C-profiles below includes 3 x E1, E2 TPH 718/918 ESD
worktop. Perforated epoxy powder TJK 150
coated steel. TJK 180 Double socket
TJK 150 SET Switch
7. Swivel arm with tray CKV TJK 180 SET Automatic fuse 10 A
Components Automatic fuse /earth leakage switch 10 A/30 mA
Swivel arm with lockable, angle E1 Emergency-stop-switch
adjustable steel tray. Load 15 kg. E2 Data connector/shielded for Cat.6
Semiconductive epoxy powder coated E3 Data connector/without screen for Cat.5
steel. Mount on C-profile. E4 Pneumatic, quick coupling 3/8”
E5 length 350
8. Cable clip set CC E6 height 1470
E7
The clips locate in the 12 mm profile slot. E8
10 PRK 5
9. Power channel 11 HKCP 147

May be fitted with a choice of
components, ordered separately. 3
m cable is included. All meet with CE
requirements. The finished TJK 150 SET
and TJK 180 SET include 3 double
sockets (E1) and a switch (E2). (Other
SETs are also available.)

10. Power panel PRK 5

Outlet panel has 5 Schuco wall sockets,
switch and 3 m cable. Mount on upright
profile or under the laminate shelf with
screws.

11. Upright profiles HKCP

If you mount both perforated panel RL and
power channel TJK to TPH benches, you
must order an extra-high upright profiles.
Height 1470 mm.
