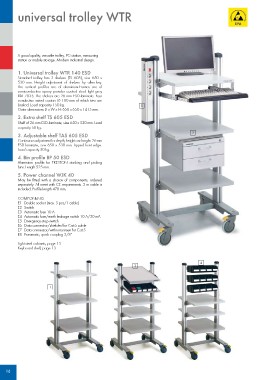

Page 16 - Treston ESD

universal trolley WTR

A good quality, versatile trolley, PC-station, measuring 5 2
station or mobile storage. Modern industrial design. 3 4

1. Universal trolley WTR 140 ESD

Standard trolley has 3 shelves (TS 605), size 650 x
530 mm. Height adjustment of shelves by allen-key.
The vertical profiles are of aluminium.Frames are of
semiconductive epoxy powder coated steel: light grey
RAL 7035. The shelves are 26 mm ESD-laminate. Four
conductive swivel castors Ø 100 mm of which two are
braked. Load capacity 150 kg.
Outer dimensions D x W x H: 650 x 650 x 1415 mm.

2. Extra shelf TS 605 ESD

Shelf of 26 mm ESD-laminate, size 650 x 530 mm. Load
capacity 50 kg.

3. Adjustable shelf TAS 605 ESD

Continuous adjustment for depth, height and angle. 26 mm
ESD-laminate, size 650 x 530 mm. Lipped front edge.
Load capacity 50 kg.

4. Bin profile BP 50 ESD

Aluminium profile for TRESTON stacking and picking
bins. Length 525 mm.

5. Power channel WJK 40

May be fitted with a choice of components, ordered
separately. All meet with CE requirements. 3 m cable is
included. Profile length 470 mm.
COMPONENTS
E1 Double socket (max. 5 pcs/1 cable)
E2 Switch
E3 Automatic fuse 10 A
E4 Automatic fuse/earth leakage switch 10 A/30 mA
E5 Emergency-stop-switch
E6 Data connector/shielded for Cat.6 cable
E7 Data connector/without screen for Cat.5
E8 Pneumatic, quick coupling 3/8”
Light steel cabinets, page 13
Keyboard shelf, page 13
