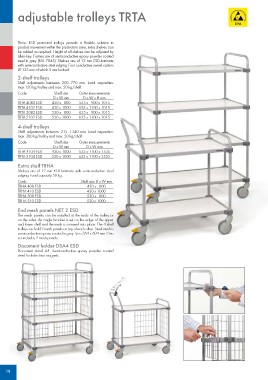

Page 18 - Treston ESD

adjustable trolleys TRTA

These ESD protected trolleys provide a flexible solution to
product movement within the production area, extra shelves can
be added as required. Height of all shelves can be adjusted by
allen-key. Frames are of semiconductive epoxy powder coated
steel in grey (RAL 7045). Shelves are of 12 mm ESD-laminate
with semiconductive steel edging. Four conductive swivel castors
Ø 125 mm of which 2 are braked.

2-shelf trolleys

Shelf adjustments between 200…770 mm. Load capacities:
max.150 kg/trolley and max. 50 kg/shelf.

Code Shelf size Outer measurements
D x W mm D x W x H mm
TRTA 4082 ESD 430 x 800
TRTA 4102 ESD 430 x 1000 535 x 900 x 1015
TRTA 5082 ESD 530 x 800 535 x 1100 x 1015
TRTA 5102 ESD 530 x 1000 635 x 900 x 1015
635 x 1100 x 1015

4-shelf trolleys

Shelf adjustments between 215…1340 mm. Load capacities:
max. 300 kg/trolley and max. 50 kg/shelf.

Code Shelf size Outer measurements
D x W mm D x W mm
TRTA 4104 ESD 430 x 1000
TRTA 5104 ESD 530 x 1000 535 x 1100 x 1535
635 x 1100 x 1535

Extra shelf TRHA

Shelves are of 12 mm ESD-laminate with semiconductive steel
edging. Load capacity 50 kg.

Code Shelf size D x W mm
TRHA 408 ESD 430 x 800
TRHA 410 ESD 430 x 1000
TRHA 508 ESD 530 x 800

TRHA 510 ESD 530 x 1000

End mesh panels NET 2 ESD

The mesh panels can be installed at the ends of the trolley or
on the sides. An angle bracket is set on the edge of the upper
and lower shelf and the mesh is screwed into place. The 4-shelf
trolley can hold 2 mesh panels on top of each other. Steel mesh is
semiconductive epoxy coated in grey. Size 364 x 604 mm. One
set includes 2 mesh panels.

Document holder DSA4 ESD

Document stand A4. Semiconductive epoxy powder coated
steel. Includes two magnets.
