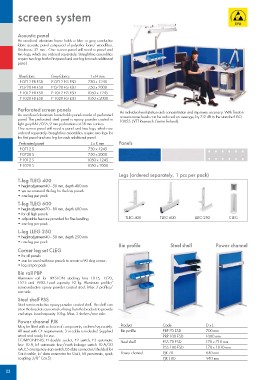

Page 22 - Treston ESD

screen system

Acoustic panel

An anodized aluminium frame holds a blue or grey conductive
fabric acoustic panel composed of polyether foam/ woodfiber.
Thickness: 32 mm . One screen panel will need a panel and
two legs, which are ordered separately. Straight line assemblies
require two legs for the first panel and one leg for each additional
panel.

Blue fabric Grey fabrics L x H mm
P 0712 FB ESD P 0712 FG ESD 750 x 1245
P 0720 FB ESD P 0720 FG ESD 750 x 2000
P 1012 FB ESD P 1012 FG ESD 1050 x 1245
P 1020 FB ESD P 1020 FG ESD 1050 x 2000

Perforated screen panels An individual workstation aids concentration and improves accuracy. With Treston
screens noise levels can be reduced on average, by 7-9 dB to the standard ISO
An anodized aluminium frame holds panels made of perforated 10053. (VTT Research Centre Finland).
panel. The perforated steel panel is epoxy powder coated in
light grey RAL 7035, 9 mm perforations at 38 mm centres. Panels
One screen panel will need a panel and two legs, which are
ordered separately. Straight line assemblies require two legs for Legs (ordered separately, 1 pcs per pack)
the first panel and one leg for each additional panel.

Perforated panel L x K mm

P 0712 S 750 x 1245

P 0720 S 750 x 2000

P 1012 S 1050 x 1245

P 1020 S 1050 x 2000

T-leg TLEG 400 TLEG 400 TLEG 600 LLEG 250 CLEG

• height adjustment 40 - 50 mm, depth 400 mm Bin profile Steel shelf Power channel
• we recommend this leg for the low panels
• one leg per pack Product Code DxL
Bin profile PBP 70 ESD 700 mm
T-leg TLEG 600 PBP 100 ESD 1000 mm
Steel shelf PSS 70 ESD 170 x 710 mm
• height adjustment 70 - 80 mm, depth 600 mm PSS 100 ESD 170 x 1010 mm
• for all high panels Power channel PJK 70 640 mm
• adjustable feet are provided for fine levelling PJK 100 940 mm
• one leg per pack

L-leg LLEG 250

• height adjustment 40 - 50 mm, depth 250 mm
• one leg per pack

Corner leg set CLEG

• for all panels
• can be used with two panels to create a 90 deg corner.
• leg set per pack

Bin rail PBP

Aluminium rail for TRESTON stacking bins 1015, 1520,
1525 and 1930. Load capacity 10 kg. Aluminium profile/
semiconductive epoxy powder coated steel. Max 3 profiles/
one side.

Steel shelf PSS

Steel semiconductive epoxy powder coated shelf. The shelf can
sit on the brackets as normal or hang from the brackets to provide
end stops. Load capacity 10 kg. Max. 3 shelves/one side.

Power channel PJK

May be fitted with a choice of components, ordered separately.
All meet with CE requirements. 3 m cable is included. Supplied
wired and ready for use.
COMPONENTS: E1double socket, E2 switch, E3 automatic
fuse 10 A, E4 automatic fuse/earth leakage switch 10 A/30
mA, E5 emergency-stop-switch, E6 data connector/shielded for
Cat.6 cable, E7 data connector for Cat.5, E8 pneumatic, quick
coupling 3/8” Cat 5)

22
