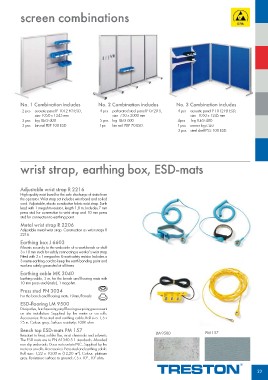

Page 23 - Treston ESD

screen combinations

No. 1 Combination includes No. 2 Combination includes No. 3 Combination includes

2 pcs acoustic panel P 1012 FG ESD, 4 pcs perforated steel panel P 0720 S, 4 pcs acoustic panel P 1012 FB ESD,
size 1050 x 1245 mm size 750 x 2000 mm size 1050 x 1245 mm

3 pcs leg TLEG 400 5 pcs leg TLEG 600 4pcs leg TLEG 400
3 pcs bin rail PBP 100 ESD 1pc bin rail PBP 70 ESD. 1 pcs corner leg CLEG
3 pcs steel shelf PSS 100 ESD.

wrist strap, earthing box, ESD-mats

Adjustable wrist strap R 2216 LM 9500 PM 157

High quality wrist band for the safe discharge of static from
the operator. Wrist strap set includes wrist band and coiled
cord. Adjustable, elastic conductive fabric wrist strap. Earth
lead with 1 megohm resistor, length 1,8 m. Includes 7 mm
press stud for connection to wrist strap and 10 mm press
stud for connection to earthing point.

Metal wrist strap R 2206

Adjustable metal wrist strap. Construction as wrist straps R
2216.

Earthing box J 6603

Mounts securely to the underside of a workbench or shelf
3 x 10 mm studs for safely connecting a worker’s wrist strap
Fitted with 3 x 1 megaohm ½ watt safety resistor Includes a
3 metre earthing cord to keep the earth bonding point and
workers safely grounded at all times

Earthing cable MK 3040

Earthing cable, 5 m, for the bench and flooring mats with
10 mm press stud (male), 1 megohm.

Press stud PN 3034

For the bench and flooring mats. 10mm/female

ESD-flooring LM 9500

Dissipative, hard wearing vinyl flooring requiring permanent
on site installation. Supplied by the metre or on rolls.
Accessories: Press stud and earthing cable. Roll size: 1,5 x
25 m. Colour: grey. Surface resistivity: 100K ohm

Bench top ESD-mats PM 157

Resistant to heat, solder flux, most chemicals and solvents.
The ESD mats are to EN 61340-5-1 standards. Abraded
non slip underside. Does not contain PVC. Supplied by the
metre or on rolls. Accessories: Press stud and earthing cable.
Roll size: 1,22 x 10,00 m (12,20 m²). Colour: platinum
grey. Resistance surface to ground: 7,5 x 105…107 ohm.

23
