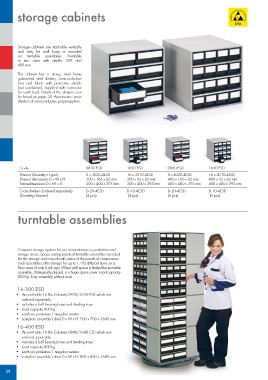

Page 28 - Treston ESD

storage cabinets

Storage cabinets are stackable vertically
and may be wall hung or mounted
on turntable assemblies. Available
in two sizes with depths 300 and
400 mm.
The cabinet has a strong, steel frame,
galvanised steel shelves, semiconductive
bins and labels with protective shields
(not conductive). Supplied with connector
for earth lead. Details of the drawers can
be found on page 30. Accessories: cross
dividers of semiconductive polypropylene.

Code 0830 ESD 1630 ESD 0840 ESD 1640 ESD
Drawer (Quantity x Typei) 8 x 3020-4ESD 16 x 3010-4ESD 8 x 4020-4ESD 16 x 4010-4ESD
Drawer dimensions D x W x H: 300 x 186 x 82 mm 300 x 92 x 82 mm 400 x 186 x 82 mm 400 x 92 x 82 mm
Framedimensions D x W x H: 300 x 400 x 395 mm 300 x 400 x 395 mm 400 x 400 x 395 mm 400 x 400 x 395 mm
Cross dividers (ordered separately) D-20-4ESD D-10-4ESD D-20-4ESD D-10-4ESD
(Quantity/drawer) (4 pcs) (4 pcs) (6 pcs) (6 pcs)

turntable assemblies

Compact storage systems for use in maintenance, production and
storage areas. Space saving practical turntable assemblies are ideal
for the storage and easy identifi cation of thousands of components.
Such assemblies offer storage for up to 1.792 different items on a
floor area of only 0,64 sqm. When wall space is limited the turntable
assembly, strategically placed, is a huge space saver. Load capacity
800 kg. Easy assembly without tools

16-300 ESD

• this unit holds 16 Bin Cabinets 0830/1630 ESD which are
ordered separately

• includes a ball bearing base and dividing trays
• load capacity 800 kg
• earth via protective 1 megohm resistor
• complete assembly’s dims D x W x H: 700 x 700 x 1680 mm

16-400 ESD

• this unit holds 16 Bin Cabinets 0840/1640 ESD which are
ordered separately

• includes a ball bearing base and dividing trays
• load capacity 800 kg
• earth via protective 1 megohm resistor
• complete assembly’s dims D x W x H: 800 x 800 x 1680 mm

28
