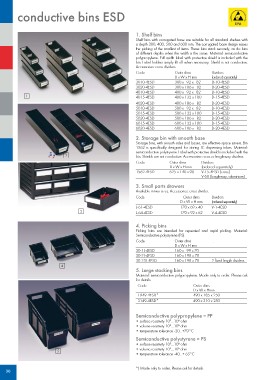

Page 30 - Treston ESD

conductive bins ESD

1. Shelf bins

Shelf bins with corrugated base are suitable for all standard shelves with
a depth 300, 400, 500 and 600 mm. The corrugated base design eases
the picking of the smallest of items. These bins stack securely, as do bins
of different depths when the width is the same. Material: semiconductive
polypropylene. Full width label with protective shield is included with the
bin. Label holders simply lift off when necessary. Shield is not conductive.
Accessories: cross dividers.

1 Code Outer dims Dividers
2 D x W x H mm (ordered separately)
3 3010-4ESD 300 x 92 x 82 D-10-4ESD
3020-4ESD 300 x 186 x 82 D-20-4ESD
4 4010-4ESD 400 x 92 x 82 D-10-4ESD
4015-4ESD 400 x 132 x 100 D-15-4ESD

4020-4ESD 400 x 186 x 82 D-20-4ESD
5010-4ESD 500 x 92 x 82 D-10-4ESD
5015-4ESD 500 x 132 x 100 D-15-4ESD
5020-4ESD 500 x 186 x 82 D-20-4ESD
6015-4ESD 600 x 132 x 100 D-15-4ESD
6020-4ESD 600 x 186 x 82 D-20-4ESD

2. Storage bin with smooth base

Storage bins, with smooth sides and bases, are effective space savers. Bin
1562 is specifically designed for storing IC dispensing tubes. Material:
semiconductive polystyrene. Label with protective shield is included with the
bin. Shields are not conductive. Accessories: cross or lengthway dividers.

Code Outer dims Dividers
1562-4ESD D x W x H mm (ordered separately)
625 x 140 x 90 V-15-4ESD (cross)
V-60 (lengthway, aluminium)

3. Small parts drawers

Available in two sizes. Accessories: cross divider.

Code Outer dims Dividers
D x W x H mm (ordered separately)

L-61-4ESD 170 x 69 x 40 V-1-4ESD

L-64-4ESD 170 x 92 x 62 V-4-4ESD

4. Picking bins

Picking bins are intended for repeated and rapid picking. Material:
Semiconductive polystyrene (PS).

Code Outer dims .
D x W x H mm

30-1L-4ESD 160 x 99 x 70
30-2L-4ESD 160 x 198 x 70

30-23L-4ESD 160 x 198 x 70 2 fixed length dividers

5. Large stacking bins

Material: semiconductive polypropylene. Made only to order. Please ask
for details.

Code Outer dims
D x W x Hmm

1949-4ESD* 490 x 185 x 250

3149-4ESD* 490 x 310 x 250

Semiconductive polypropylene = PP

• s urface resistivity 103...106 ohm
• volume resistivity 103...106 ohm
• temperature tolerance -20...+70°C

Semiconductive polystyrene = PS
• surface resistivity 103...106 ohm

5 • volume resistivity 103...106 ohm
• temperature tolerance -40...+ 65°C

30 *) Made only to order. Please ask for details.
