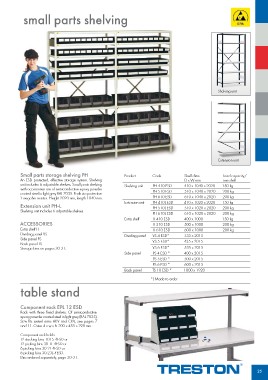

Page 25 - Treston ESD

small parts shelving

Shelving unit

Extension unit

Small parts storage shelving PH Product Code Shelf dims Load capacity/
D x W mm one shelf
An ESD protected, effective storage system. Shelving Shelving unit PH 410 ESD 410 x 1040 x 2020 150 kg
unit includes 6 adjustable shelves. Small parts shelving Extension unit PH 510 ESD 510 x 1040 x 2020 200 kg
with accessories are of semiconductive epoxy powder Extra shelf PH 610 ESD 610 x 1040 x 2020 200 kg
coated steel in light grey RAL 7035. Earth via protective Dividing panel PH 410L ESD 410 x 1020 x 2020 150 kg
1 megohm resistor. Height 2020 mm, length 1040 mm. Side panel PH 510L ESD 510 x 1020 x 2020 200 kg
Back panel PH 610L ESD 610 x 1020 x 2020 200 kg
Extension unit PH-L H 410 ESD 400 x 1000 150 kg
H 510 ESD 500 x 1000 200 kg
Shelving unit includes 6 adjustable shelves H 610 ESD 600 x 1000 200 kg
VS 4 ESD* 335 x 2015
ACCESSORIES VS 5 ESD* 435 x 2015

Extra shelf H VS 6 ESD* 535 x 2015
Dividing panel VS PS 4 ESD * 400 x 2015
Side panel PS PS 5 ESD * 500 x 2015
Back panel TS PS 6 ESD * 600 x 2015
Storage bins on pages 30-31. TS 10 ESD * 1000 x 1920

table stand *) Made to order

Component rack EPL 12 ESD

Rack with three fixed shelves. Of semiconductive
epoxy powder coated steel in light grey (RAL 7035).
Size fits swivel arms AKV and CKV, see pages 7
and 11. Outer d x w x h: 200 x 455 x 290 mm .
Component rack holds:
12 stacking bins 1015-4ESD or
12 picking bins 30-1L-4ESD or
6 picking bins 30-2L-4ESD or
6 picking bins 30-23L-4ESD.
Bins ordered separately, page 30-31.

25
