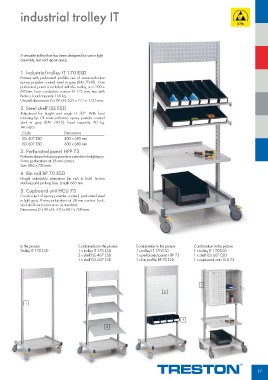

Page 17 - Treston ESD

industrial trolley IT

A versatile trolley that has been designed for use in light
assembly, test and repair areas.

1. Industrial trolley IT 170 ESD

Frames with perforated profiles are of semiconductive
epoxy powder coated steel in grey (RAL 7045). One
perforated panel is included with the trolley, size 200 x
685mm. Four conductive castors Ø 125 mm, two with
brakes. Load capacity 150 kg.
Overall dimensions D x W x H: 625 x 777 x 1725 mm.

2. Steel shelf ISS ESD

Adjustment for height and angle 0...30°. With front
retaining lip. Of semiconductive epoxy powder coated
steel in grey (RAL 7045). Load capacity 40 kg.
Two sizes.

Code Dimensions
ISS 407 ESD 400 x 680 mm
ISS 607 ESD 600 x 680 mm

3. Perforated panel HPP 73

Perforatedpanelofepoxypowdercoatedsteelinlightgrey.
9 mm perforations at 38 mm centres.
Size 686 x 750 mm.

4. Bin rail BP 70 ESD

Height adjustable aluminium bin rail, to hold Treston
stacking and picking bins. Length 685 mm.

5. Cupboard unit HCU 73

Constructed of epoxy powder coated, perforated steel
in light grey: 9 mm perforations at 38 mm centres. Lock,
steel shelf and connectors as standard.
Dimensions D x W x H: 310 x 687 x 700 mm.

In the picture: Combination in the picture: Combination in the picture: Combination in the picture:
Trolley IT 170 ESD 1 x trolley IT 170 ESD 1 x trolley IT 170 ESD 1 x trolley IT 170 ESD
2 x shelf ISS 407 ESD 1 x perforated panel HPP 73 1 x shelf ISS 607 ESD
1 1 x shelf ISS 607 ESD 1 x bin profile BP 70 ESD 1 x cupboard unit HCU 73

5
3

4
2

17
