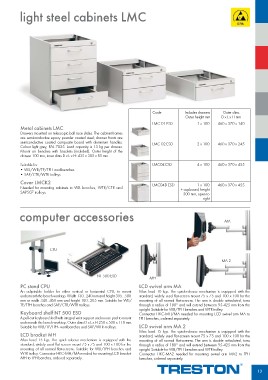

Page 13 - Treston ESD

light steel cabinets LMC

Metal cabinets LMC Code Includes drawers Outer dims
LMC 01 ESD Outer height mm D x L x H mm
Drawers mounted on telescopic ball race slides. The cabinet frames 460 x 370 x 140
are semiconductive epoxy powder coated steel; drawer fronts are 1 x 100
semiconductive coated composite board with aluminium handles.
Colour light grey, RAL 7035. Load capacity is 15 kg per drawer. LMC 02 ESD 2 x 100 460 x 370 x 245
Mount on benches with brackets (included). Outer height of the
drawer 100 mm, inner dims D x L x H: 435 x 305 x 85 mm LMC04 ESD 4 x 100 460 x 370 x 455
Suitable for
• WS/WB/TP/TPH workbenches LMC04D ESD 1 x 100 460 x 370 x 455
• SAP/CTR/WTR trolleys + cupboard, height

Cover LMCK2 300 mm, open to
right
Needed for mounting cabinets to WB benches, WTR/CTR and
SAP507 trolleys. MA

computer accessories

CPU
MA 2

NT 500 ESD MH

PC stand CPU LCD swivel arm MA

An adjustable holder for either vertical or horizontal CPU, to mount Max load 10 kgs. The quick-release mechanism is equipped with the
underneath the bench worktop. Width 130…240 mm and height 395…500 standard, widely used flat-screen mount 75 x 75 and 100 x 100 for the
mm or width 340…460 mm and height 180…285 mm. Suitable for WB/ mounting of all normal flat-screens. The arm is double articulated, turns
TP/TPH benches and SAP/CTR/WTR trolleys. through a radius of 180° and will extend between 95-425 mm from the
upright. Suitable for WB/TPH benches and WTR trolley.
Keyboard shelf NT 500 ESD Connector HKC-MH/MA needed for mounting LCD swivel arm MA to
TPH benches, ordered separately.
A pull-out keyboard shelf with integral wrist support and mouse pad to mount
underneath the bench worktop. Outer dims D x L x H 250 x 500 x 110 mm. LCD swivel arm MA 2
Suitable for WB/TP/TPH- workbenches and SAP/WTR- trolleys.
Max load 15 kgs. The quick-release mechanism is equipped with the
LCD bracket MH standard, widely used flat-screen mount 75 x 75 and 100 x 100 for the
mounting of all normal flat-screens. The arm is double articulated, turns
Max load 15 kgs. The quick-release mechanism is equipped with the through a radius of 180° and will extend between 95-425 mm from the
standard, widely used flat-screen mount 75 x 75 and 100 x 100 for the upright. Suitable for WB/TPH benches and WTR trolley.
mounting of all normal flat-screens. Suitable for WB/TPH benches and Connector HKC-MA2 needed for mounting swivel arm MA2 to TPH
WTR trolley. Connector HKC-MH/MA needed for mounting LCD bracket benches, ordered separately.
MH to TPH benches, ordered separately.

13
