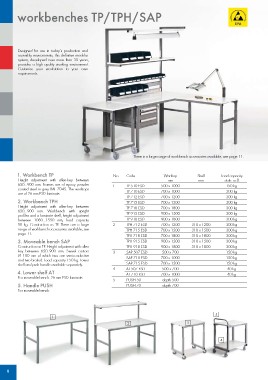

Page 8 - Treston ESD

workbenches TP/TPH/SAP

Designed for use in today’s production and
assembly environments, this definitive modular
system, developed over more than 35 years,
provides a high quality working environment.
Customise your workstation to your own
requirements.

There is a large range of workbench accessories available, see page 11.

1. Workbench TP No. Code Worktop Shelf Load capacity
mm mm static u.d.l.
Height adjustment with allen-key between 1 TP 510 ESD 150 kg
650...900 mm. Frames are of epoxy powder TP 710 ESD 500 x 1000 310 x 1200 300 kg
coated steel in grey RAL 7045. The worktops TP 712 ESD 700 x 1000 310 x 1500 300 kg
are of 26 mm ESD-laminate. TP 715 ESD 700 x 1200 310 x 1800 300 kg
TP 718 ESD 700 x 1500 310 x 1500 300 kg
2. Workbench TPH TP 915 ESD 700 x 1800 310 x 1800 300 kg
TP 918 ESD 900 x 1500 300 kg
Height adjustment with allen-key between 900 x 1800 300 kg
650...900 mm. Workbench with upright 2 TPH 712 ESD 700 x 1200 300 kg
profiles and a laminate shelf, height adjustment TPH 715 ESD 700 x 1500 300 kg
between 1080...1550 mm, load capacity TPH 718 ESD 700 x 1800 300 kg
50 kg. Construction as TP. There are a large TPH 915 ESD 900 x 1500 300 kg
range of workbench accessories available, see TPH 918 ESD 900 x 1800 150 kg
page 11. 500 x 700 150 kg
3 SAP 507 ESD 700 x 1000 150 kg
3. Moveable bench SAP SAP 710 ESD 700 x 1500 40 kg
SAP 715 ESD 500 x 700 40 kg
Construction as TP. Height adjustment with allen 700 x 1000
key between 650..900 mm. Swivel castors 4 AT 507 ESD depth 500
Ø 100 mm of which two are semiconductive AT 710 ESD depth 700
and two braked. Load capacity 150 kg. Lower
shelf and push handle available separately. 5 PUSH 50
PUSH 70
4. Lower shelf AT
5
For moveable bench. 26 mm ESD-laminate. 23

5. Handle PUSH 4

For moveable bench.

1

8
