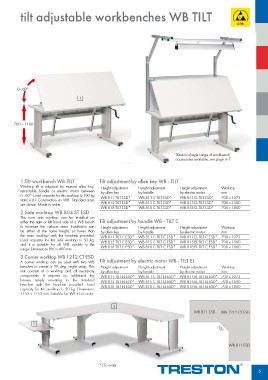

Page 5 - Treston ESD

tilt adjustable workbenches WB TILT

0...60° 1
700 – 1100

There is a large range of workbench
accessories available, see page 6-7.

1.Tilt workbench WB-TILT Tilt adjustment by allen key WB - TILT

Worktop tilt is adjusted by manual allen key, Height adjustment Height adjustment Height adjustment Worktop
retractable handle or electric motor between by allen key by handle by electric motor mm
0...60°. Load capacity for this worktop is 100 kg
static u.d.l. Construction as WB. Standard sizes WB 811 TILT ESD* WB 811 C TILT ESD* WB 811 EL TILT ESD* 700 x 1073
are shown. Made to order. WB 815 TILT ESD* WB 815 C TILT ESD* WB 815 EL TILT ESD* 700 x 1500
WB 818 TILT ESD* WB 818 C TILT ESD* WB 818 EL TILT ESD* 700 x 1800
2.Side worktop WB 804 ST ESD
Tilt adjustment by handle WB - TILT C
This new side worktop can be installed on
either the right or left hand side of a WB bench Height adjustment Height adjustment Height adjustment Worktop
to increase the surface area. Installation can by allen key by handle by electric motor mm
be either at the same height, or lower than 700 x 1073
the main worktop with the brackets provided. WB 811 TILT C ESD* WB 811 C TILT C ESD* WB 811 EL TILT C ESD* 700 x 1500
Load capacity for this side worktop is 50 kg, 700 x 1800
and it is suitable for all WB models in the WB 815 TILT C ESD* WB 815 C TILT C ESD* WB 815 EL TILT C ESD*
range. Dimensions 800 x 400 mm. WB 818 TILT C ESD* WB 818 C TILT C ESD* WB 818 EL TILT C ESD*

3.Corner worktop WB 1212 CT ESD Tilt adjustment by electric motor WB - TILT EL

A corner worktop can be used with two WB Height adjustment Height adjustment Height adjustment Worktop
benches to create a 90 deg. angle setup. This by allen key by handle by electric motor mm
unit consists of a worktop and all necessary
components. It requires no additional leg WB 811 TILT EL ESD* WB 811 C TILT EL ESD* WB 811 EL TILT EL ESD* 700 x 1073
frames, simply mounting to the standard
benches with the brackets provided. Load WB 815 TILT EL ESD* WB 815 C TILT EL ESD* WB 815 EL TILT EL ESD* 700 x 1500
capacity for this worktop is 50 kg. Dimensions WB 818 TILT EL ESD* WB 818 C TILT EL ESD* WB 818 EL TILT EL ESD* 700 x 1800
1153 x 1153 mm. Suitable for WB EL to order.

3
WB 811 ESD WB 1212 CT ESD

2

500

*) To order WB 811 ESD
5
