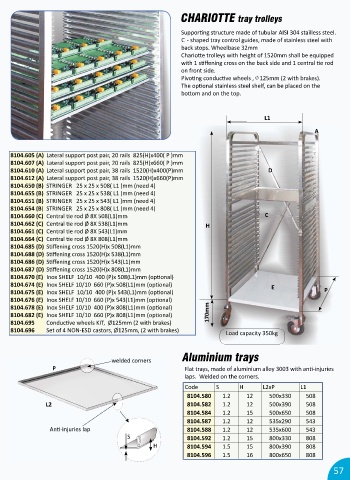

CHARIOTTE tray trolleys

Suppor ng structure made of tubular AISI 304 stailless steel.
C - shaped tray control guides, made of stainless steel with
back stops. Wheelbase 32mm

Chario e trolleys with height of 1520mm shall be equipped
with 1 s ffening cross on the back side and 1 central e rod

on front side.

Pivo ng conduc ve wheels , ∅125mm (2 with brakes).

The op onal stainless steel shelf, can be placed on the

bo om and on the top.

L1 L1
A A

8104.605 (A) Lateral support post pair, 20 rails 825(H)x400( P )mm
8104.607 (A) Lateral support post pair, 20 rails 825(H)x660( P )mm
8104.610 (A) Lateral support post pair, 38 rails 1520(H)x400(P)mm D D
8104.612 (A) Lateral support post pair, 38 rails 1520(H)x660(P)mm
8104.650 (B) STRINGER 25 x 25 x 508( L1 )mm (need 4)
8104.655 (B) STRINGER 25 x 25 x 538( L1 )mm (need 4)
8104.651 (B) STRINGER 25 x 25 x 543( L1 )mm (need 4)
8104.654 (B) STRINGER 25 x 25 x 808( L1 )mm (need 4)
8104.660 (C) Central e rod Ø 8X 508(L1)mm C C

8104.662 (C) Central e rod Ø 8X 538(L1)mm H H

8104.661 (C) Central e rod Ø 8X 543(L1)mm
8104.664 (C) Central e rod Ø 8X 808(L1)mm

8104.685 (D) S ffening cross 1520(H)x 508(L1)mm
8104.688 (D) S ffening cross 1520(H)x 538(L1)mm

8104.686 (D) S ffening cross 1520(H)x 543(L1)mm

8104.687 (D) S ffening cross 1520(H)x 808(L1)mm

8104.670 (E) Inox SHELF 10/10 400 (P)x 508(L1)mm (op onal)

8104.674 (E) Inox SHELF 10/10 660 (P)x 508(L1)mm (op onal) E E

8104.675 (E) Inox SHELF 10/10 400 (P)x 543(L1)mm (op onal) P P

8104.676 (E) Inox SHELF 10/10 660 (P)x 543(L1)mm (op onal)

8104.678 (E) Inox SHELF 10/10 400 (P)x 808(L1)mm (op onal)

8104.682 (E) Inox SHELF 10/10 660 (P)x 808(L1)mm (op onal) 170mm 170mm

8104.695 Conduc ve wheels KIT, Ø125mm (2 with brakes)
8104.696 Set of 4 NON-ESD castors, Ø125mm, (2 with brakes)
Load capacity 350kg
Aluminium trays
welded corners
P P Flat trays, made of aluminium alloy 3003 with an -injuries

laps. Welded on the corners.
Code S H L2xP L1
8104.580 1.2 12 500x330 508
L2 L2 8104.582 1.2 12 500x390 508
8104.584 1.2 15 500x650 508
8104.587 1.2 12 535x290 543

An -injuries lap 8104.588 1.2 12 535x600 543
S 8104.592 1.2 15 800x330 808
H 8104.594 1.5 15 800x390 808
8104.596 1.5 16 800x650 808
