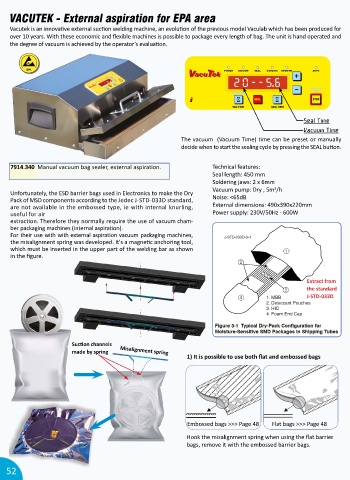

VACUTEK - External aspiration for EPA area

Vacutek is an innova ve external suc on welding machine, an evolu on of the previous model Vaculab which has been produced for

over 10 years. With these economic and flexible machines is possible to package every length of bag. The unit is hand operated and
the degree of vacuum is achieved by the operator’s evalua on.

20--56 .6
20--5
20--56
20--56

Seal Timeeal Time
S
Vacuum Timee
V acuum T im

The vacuum (Vacuum Time) me can be preset or manually
decide when to start the sealing cycle by pressing the SEAL bu on.

7914.340 Manual vacuum bag sealer, external aspira on. Technical features:

Seal length: 450 mm
Soldering jaws: 2 x 6mm
Vacuum pump: Dry , 5m /h
3
Unfortunately, the ESD barrier bags used in Electronics to make the Dry
Pack of MSD components according to the Jedec J-STD-033D standard, Noise: <65dB
are not available in the embossed type, ie with internal knurling, External dimensions: 490x390x220mm
useful for air Power supply: 230V/50Hz - 600W
extrac on. Therefore they normally require the use of vacuum cham-

ber packaging machines (internal aspira on).
For their use with with external aspira on vacuum packaging machines,

the misalignment spring was developed. It's a magne c anchoring tool,
which must be inserted in the upper part of the welding bar as shown
in the figure.

Extract from
the standard
J-STD-033D

Suc on channels
made by spring Misalignment spring
1) It is possible to use both flat and embossed bags

Embossed bags >>> Page 48 Flat bags >>> Page 48

Hook the misalignment spring when using the flat barrier

bags, remove it with the embossed barrier bags.
