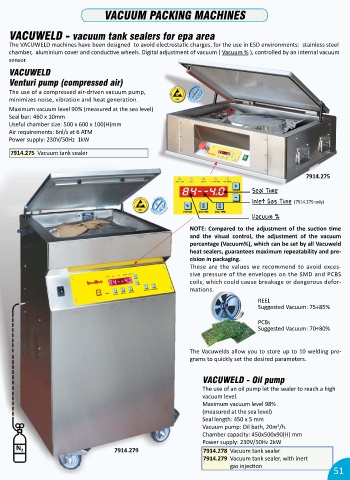

VACUUM PACKING MACHINES

VACUWELD - vacuum tank sealers for epa area

The VACUWELD machines have been designed to avoid electrosta c charges, for the use in ESD environments: stainless steel

chamber, aluminium cover and conduc ve wheels. Digital adjustment of vacuum ( Vacuum % ), controlled by an internal vacuum
sensor.
VACUWELD
Venturi pump (compressed air)

The use of a compressed air-driven vacuum pump,
minimizes noise, vibration and heat generation.
Maximum vacuum level 90% (measured at the sea level)
Seal bar: 460 x 10mm
Useful chamber size: 500 x 600 x 100(H)mm
Air requirements: 6nl/s at 6 ATM
Power supply: 230V/50Hz 1kW

7914.275 Vacuum tank sealer

14.
7914.275
79
2
75
Seal Time
Inlet Gas Time (7914.279 only)
Vacuum %

NOTE: Compared to the adjustment of the suc on me

and the visual control, the adjustment of the vacuum
percentage (Vacuum%), which can be set by all Vacuweld
heat sealers, guarantees maximum repeatability and pre-
cision in packaging.
These are the values we recommend to avoid exces-
sive pressure of the envelopes on the SMD and PCBS
coils, which could cause breakage or dangerous defor-
mations.
REEL
Suggested Vacuum: 75÷85%

PCBS
Suggested Vacuum: 70÷80%

The Vacuwelds allow you to store up to 10 welding pro-
grams to quickly set the desired parameters.

VACUWELD - Oil pump
The use of an oil pump let the sealer to reach a high
vacuum level.
Maximum vacuum level 98%
(measured at the sea level)
Seal length: 450 x 5 mm
3
Vacuum pump: Oil bath, 20m /h.
Chamber capacity: 450x500x90(H) mm
Power supply: 230V/50Hz 2kW
7914.279
7914.279 7914.278 Vacuum tank sealer
N 2 N 2
7914.279 Vacuum tank sealer, with inert
gas injec on
