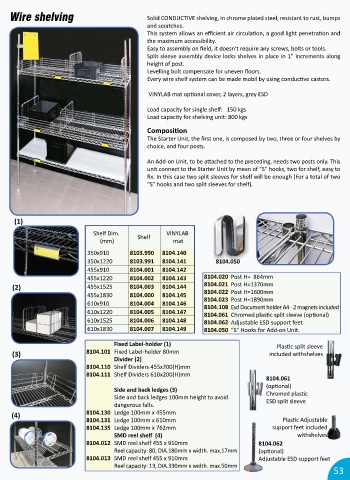

Wire shelving Solid CONDUCTIVE shelving, in chrome plated steel, resistant to rust, bumps

and scratches.

This system allows an efficient air circula on, a good light penetra on and

the maximum accessibility.

Easy to assembly on field, it doesn’t require any screws, bolts or tools.
Split sleeve assembly device locks shelves in place in 1” increments along
height of post.
Levelling bolt compensate for uneven floors.

Every wire shelf system can be made mobil by using conduc ve castors.

VINYLAB mat op onal cover, 2 layers, grey ESD
Load capacity for single shelf: 150 kgs
Load capacity for shelving unit: 800 kgs
Composi on
The Starter Unit, the first one, is composed by two, three or four shelves by

choice, and four posts.

An Add-on Unit, to be a ached to the preceding, needs two posts only. This
unit connect to the Starter Unit by mean of “S” hooks, two for shelf, easy to
fix. In this case two split sleeves for shelf will be enough (For a total of two

“S” hooks and two split sleeves for shelf).

( (1) )
1
Shelf Dim. VINYLAB
Shelf
(mm) mat
350x910 8103.990 8104.140
350x1220 8103.991 8104.141 8104.050
4.
1
0
050
8
455x910 8104.001 8104.142
455x1220 8104.002 8104.143 8104.020 Post H= 864mm
(2)
(2) 455x1525 8104.003 8104.144 8104.021 Post H=1370mm
455x1830 8104.000 8104.145 8104.022 Post H=1600mm
8104.023 Post H=1890mm
610x910 8104.004 8104.146
8104.108 Esd Document holder A4 - 2 magnets included
610x1220 8104.005 8104.147 8104.061 Chromed plas c split sleeve (op onal)
610x1525 8104.006 8104.148 8104.062 Adjustable ESD support feet
610x1830 8104.007 8104.149 8104.050 “S” Hooks for Add-on Unit.
Fixed Label-holder (1) Plas c split sleeve

(3)
(3) 8104.101 Fixed Label-holder 80mm included withshelves
Divider (2)
8104.110 Shelf Dividers 455x200(H)mm
8104.111 Shelf Dividers 610x200(H)mm
8104.061

(op onal)
Side and back ledges (3)
Chromed plas c
Side and back ledges 100mm height to avoid
ESD split sleeve
dangerous falls.
(4) 8104.130 Ledge 100mm x 455mm
(4)

8104.131 Ledge 100mm x 610mm Plas c Adjustable
8104.135 Ledge 100mm x 762mm support feet included
SMD reel shelf (4) withshelves
8104.012 SMD reel shelf 455 x 910mm 8104.062
Reel capacity: 80, DIA.180mm x width. max.17mm (op onal)

8104.013 SMD reel shelf 455 x 910mm Adjustable ESD support feet
Reel capacity: 13, DIA.330mm x width. max.50mm
53
