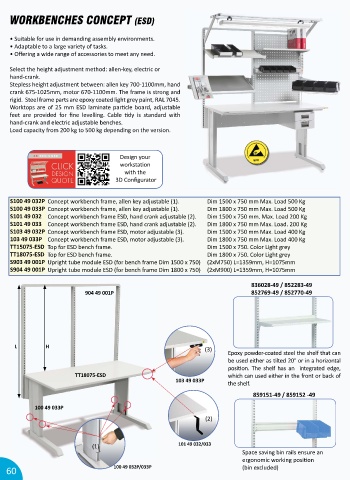

WORKBENCHES CONCEPT (ESD)

• Suitable for use in demanding assembly environments.
• Adaptable to a large variety of tasks.
• Offering a wide range of accessories to meet any need.

Select the height adjustment method: allen-key, electric or
hand-crank.
Stepless height adjustment between: allen key 700-1100mm, hand
crank 675-1025mm, motor 670-1100mm. The frame is strong and
rigid. Steel frame parts are epoxy coated light grey paint, RAL 7045.

Worktops are of 25 mm ESD laminate par cle board, adjustable

feet are provided for fine levelling. Cable dy is standard with
hand-crank and electric adjustable benches.
Load capacity from 200 kg to 500 kg depending on the version.

Design your

worksta on
with the

3D Configurator

S100 49 032P Concept workbench frame, allen key adjustable (1). Dim 1500 x 750 mm Max. Load 500 Kg
S100 49 033P Concept workbench frame, allen key adjustable (1). Dim 1800 x 750 mm Max. Load 500 Kg
S101 49 032 Concept workbench frame ESD, hand crank adjustable (2). Dim 1500 x 750 mm. Max. Load 200 Kg
S101 49 033 Concept workbench frame ESD, hand crank adjustable (2). Dim 1800 x 750 mm Max. Load. 200 Kg
S103 49 032P Concept workbench frame ESD, motor adjustable (3). Dim 1500 x 750 mm Max. Load 400 Kg
103 49 033P Concept workbench frame ESD, motor adjustable (3). Dim 1800 x 750 mm Max. Load 400 Kg
TT15075-ESD Top for ESD bench frame. Dim 1500 x 750. Color Light grey
TT18075-ESD Top for ESD bench frame. Dim 1800 x 750. Color Light grey
S903 49 001P Upright tube module ESD (for bench frame Dim 1500 x 750) (2xM750) L=1359mm, H=1075mm
S904 49 001P Upright tube module ESD (for bench frame Dim 1800 x 750) (2xM900) L=1359mm, H=1075mm

836028-49 / 852283-49
904 49 001P 852769-49 / 852770-49

L H
(3)
Epoxy powder-coated steel the shelf that can
be used either as lted 20° or in a horizontal

posi on. The shelf has an integrated edge,

TT18075-ESD which can used either in the front or back of
103 49 033P
the shelf.
859151-49 / 859152 -49
100 49 033P
(2)

(1) 101 49 032/033
Space saving bin rails ensure an

ergonomic working posi on
60 100 49 032P/033P (bin excluded)
