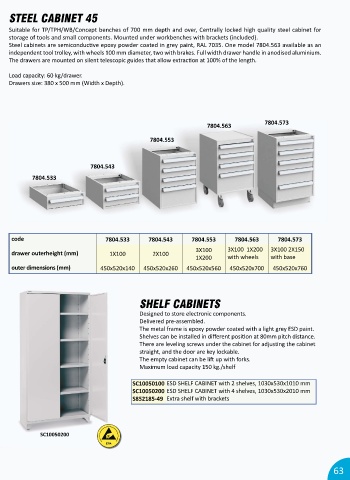

Page 63 - ITECO Catalogue 2024

STEEL CABINET 45

Suitable for TP/TPH/WB/Concept benches of 700 mm depth and over, Centrally locked high quality steel cabinet for
storage of tools and small components. Mounted under workbenches with brackets (included).

Steel cabinets are semiconduc ve epoxy powder coated in grey paint, RAL 7035. One model 7804.563 available as an
independent tool trolley, with wheels 100 mm diameter, two with brakes. Full width drawer handle in anodised aluminium.

The drawers are mounted on silent telescopic guides that allow extrac on at 100% of the length.
Load capacity: 60 kg/drawer.
Drawers size: 380 x 500 mm (Width x Depth).

7804.573
7804.563
7804.553

7804.543
7804.533

code 7804.533 7804.543 7804.553 7804.563 7804.573
3X100 3X100 1X200 3X100 2X150
drawer outerheight (mm) 1X100 2X100
1X200 with wheels with base
outer dimensions (mm) 450x520x140 450x520x260 450x520x560 450x520x700 450x520x760

SHELF CABINETS

Designed to store electronic components.
Delivered pre-assembled.
The metal frame is epoxy powder coated with a light grey ESD paint.
Shelves can be installed in different posi on at 80mm pitch distance.

There are leveling screws under the cabinet for adjus ng the cabinet
straight, and the door are key lockable.

The empty cabinet can be li up with forks.
Maximum load capacity 150 kg./shelf
SC10050100 ESD SHELF CABINET with 2 shelves, 1030x530x1010 mm
SC10050200 ESD SHELF CABINET with 4 shelves, 1030x530x2010 mm
S852185-49 Extra shelf with brackets

SC10050200
