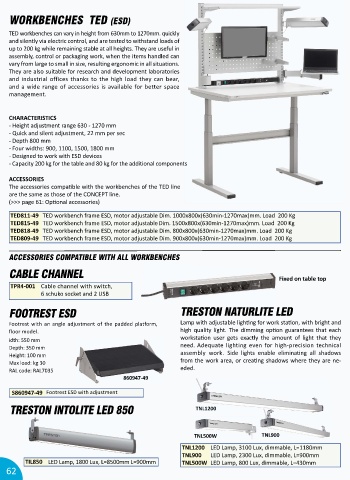

Page 62 - ITECO Catalogue 2024

WORKBENCHES TED (ESD)

TED workbenches can vary in height from 630mm to 1270mm. quickly
and silently via electric control, and are tested to withstand loads of
up to 200 kg while remaining stable at all heights. They are useful in
assembly, control or packaging work, when the items handled can

vary from large to small in size, resul ng ergonomic in all situa ons.

They are also suitable for research and development laboratories
and industrial offices thanks to the high load they can bear,
and a wide range of accessories is available for better space
management.

CHARACTERISTICS
- Height adjustment range 630 - 1270 mm
- Quick and silent adjustment, 22 mm per sec
- Depth 800 mm
- Four widths: 900, 1100, 1500, 1800 mm
- Designed to work with ESD devices

- Capacity 200 kg for the table and 80 kg for the addi onal components
ACCESSORIES
The accessories compa ble with the workbenches of the TED line

are the same as those of the CONCEPT line.

(>>> page 61: Op onal accessories)
TED811-49 TED workbench frame ESD, motor adjustable Dim. 1000x800x(630min-1270max)mm. Load 200 Kg
TED815-49 TED workbench frame ESD, motor adjustableDim. 1500x800x(630min-1270max)mm. Load 200 Kg

TED818-49 TED workbench frame ESD, motor adjustable Dim. 800x800x(630min-1270max)mm. Load 200 Kg
TED809-49 TED workbench frame ESD, motor adjustable Dim. 900x800x(630min-1270max)mm. Load 200 Kg

ACCESSORIES COMPATIBLE WITH ALL WORKBENCHES

CABLE CHANNEL Fixed on table top

TPR4-001 Cable channel with switch,
6 schuko socket and 2 USB

FOOTREST ESD TRESTON NATURLITE LED

Footrest with an angle adjustment of the padded platform, Lamp with adjustable ligh ng for work sta on, with bright and

floor model. high quality light. The dimming op on guarantees that each

worksta on user gets exactly the amount of light that they
idth: 550 mm
Depth: 350 mm need. Adequate lighting even for high-precision technical

Height: 100 mm assembly work. Side lights enable elimina ng all shadows

Max load: kg 30 from the work area, or crea ng shadows where they are ne-
RAL code: RAL7035 eded.
860947-49
S860947-49 Footrest ESD with adjustment
TRESTON INTOLITE LED 850 TNL1200

TNL500W TNL900
TNL1200 LED Lamp, 3100 Lux, dimmable, L=1180mm
TNL900 LED Lamp, 2300 Lux, dimmable, L=900mm
TIL850 LED Lamp, 1800 Lux, L=8500mm L=900mm TNL500W LED Lamp, 800 Lux, dimmable, L=430mm
62
