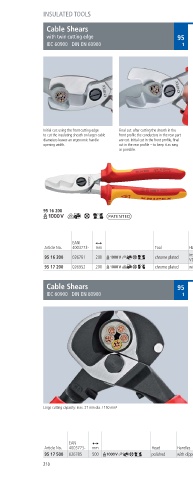

INSULATED TOOLS

Cable Shears > for cutting copper and aluminium cables
with twin cutting edge 95 > not suitable for steel wire and hard drawn copper conductors
IEC 60900 DIN EN 60900 1 > precision ground, hardened blades
> clean and smooth cut without crushing and deformation
> easy cutting with one hand operation
> by dividing the cutting actions into initial cut (insulating sheath in the
front cutting area) and final cut (conductor in the back cutting area),
cables up to Ø 20 mm can be cut in one hand operation
> less effort required due to favourable lever ratio and optimised
cutting edge geometry
> guard prevents operators‘ fingers being pinched
> adjustable bolted joint, self retaining screw
> High grade special tool steel, forged, oil hardened

Initial cut: using the front cutting edge Final cut: after cutting the sheath in the
to cut the insulating sheath on larger cable front profile the conductors in the rear part
diameters leaves an ergonomic handle are cut Initial cut in the front profile, final
opening width cut in the rear profile – to keep it as easy
as possible

95 16 200 95 17 200

Cutting capacities
EAN
Article No 003773 mm Tool Handles Ø mm mm² AWG g
insulated with multi component grips,
95 16 200 026761 200 chrome plated 20 70 2/0 3 0
VDE tested
95 17 200 026952 200 chrome plated with dipped insulation, VDE tested 20 70 2/0 360

Cable Shears 95 > for cutting copper and aluminium single conductors as well
IEC 60900 DIN EN 60900 1 as multiple stranded cables
> not suitable for steel wire and wire ropes precision ground,
hardened blades
> clean and smooth cut without crushing and deformation
> less effort required due to favourable lever ratio and optimised
cutting edge geometry
> short design, length only 500 mm
> low weight
> guard prevents operators‘ fingers being pinched
> adjustable bolted joint
> Cutter head: vanadium electric steel, forged, oil hardened
> handles: aluminium tube, high strength

Large cutting capacity: max 27 mm dia / 150 mm²
95 17 500

Cutting capacities
EAN
Article No 003773 mm Head Handles Ø mm mm² AWG g
95 17 500 026785 500 polished with dipped insulation, VDE tested 27 150 5/0 1 77
