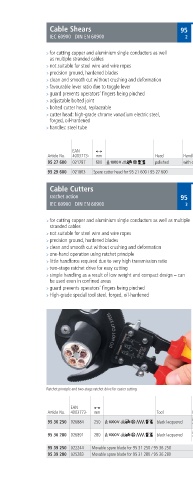

Page 399 - KNIPEX katalógus

INSULATED TOOLS

Cable Shears 95
IEC 60900 DIN EN 60900 2

> for cutting copper and aluminium single conductors as well
as multiple stranded cables
> not suitable for steel wire and wire ropes
> precision ground, hardened blades
> clean and smooth cut without crushing and deformation
> favourable lever ratio due to toggle lever 95 27 600
> guard prevents operators‘ fingers being pinched
> adjustable bolted joint
> bolted cutter head, replaceable
> cutter head: high grade chrome vanadium electric steel,
forged, oil hardened
> handles: steel tube

Cutting capacities
EAN
Article No 003773 mm Head Handles Ø mm mm² AWG g
95 27 600 021797 600 polished with dipped insulation, VDE tested 27 150 5/0 2301
95 29 600 021803 Spare cutter head for 95 21 600 / 95 27 600

Cable Cutters
ratchet action 95
IEC 60900 DIN EN 60900 3

> for cutting copper and aluminium single conductors as well as multiple
stranded cables
> not suitable for steel wire and wire ropes
> precision ground, hardened blades
95 36 250
> clean and smooth cut without crushing and deformation
> one hand operation using ratchet principle
> little handforce required due to very high transmission ratio
> two stage ratchet drive for easy cutting
> simple handling as a result of low weight and compact design – can
be used even in confined areas
> guard prevents operators‘ fingers being pinched
> High grade special tool steel, forged, oil hardened

95 36 280

Product video Product video
95 36 250 95 36 280

95 36 280
suitable for aluminium sector
cable up to x 150 mm²
Ratchet principle and two stage ratchet drive for easier cutting
Cutting capacities
EAN
Article No 003773 mm Tool Handles Ø mm mm² MCM g
insulated with multi component grips,
95 36 250 02688 250 black lacquered 32 2 0 500 652
VDE tested
insulated with multi component grips,
95 36 280 026891 280 black lacquered VDE tested 52 380 750 835
95 39 250 0222 Movable spare blade for 95 31 250 / 95 36 250
95 39 280 025283 Movable spare blade for 95 31 280 / 95 36 280
211
