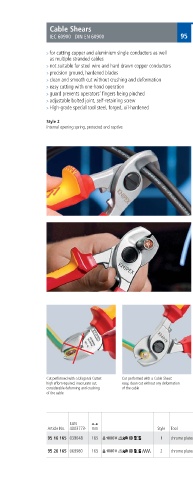

INSULATED TOOLS

Cable Shears
IEC 60900 DIN EN 60900 95

> for cutting copper and aluminium single conductors as well
as multiple stranded cables
> not suitable for steel wire and hard drawn copper conductors
> precision ground, hardened blades
> clean and smooth cut without crushing and deformation
> easy cutting with one hand operation 95 16 165
> guard prevents operators‘ fingers being pinched
> adjustable bolted joint, self retaining screw
> High grade special tool steel, forged, oil hardened

Style 2
internal opening spring, protected and captive

95 26 165

Cut performed with a Diagonal Cutter: Cut performed with a Cable Shear:
high effort required, inaccurate cut, easy, clean cut without any deformation
considerable deforming and crushing of the cable
of the cable

Cutting capacities
EAN
Article No 003773 mm Style Tool Handles Ø mm mm² AWG g
insulated with multi component
95 16 165 0396 8 165 1 chrome plated grips, VDE tested 15 50 1/0 262
insulated with multi component
95 26 165 069980 165 2 chrome plated 15 50 1/0 275
grips, VDE tested
