INSULATED TOOLS

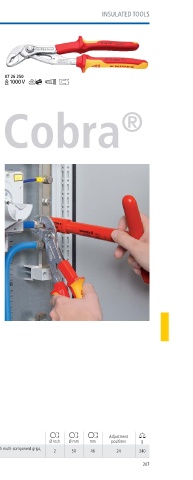

KNIPEX Cobra VDE
®
Hightech Water Pump Pliers, insulated 87
DIN ISO 8976 IEC 60900 DIN EN 60900 26

> adjustment by shifting one jaw directly on to the workpiece:
fast, reliable and comfortable handling
> opening at the touch of a button apart form the workpiece
87 26 250
> fine adjustment to fit very different workpiece sizes with a comfortable
handle position
> good access to the workpiece due to slim size in the head and joint
area
> self locking on pipes and nuts: no slipping on the workpiece and low
handforce required
> Chrome vanadium electric steel, forged, multi stage oil hardened Cobra ®
> gripping surfaces with special hardened teeth, teeth hardness approx
61 HRC: low wear and stable gripping
> box joint design: high stability because of the double guide
> guard prevents operators‘ fingers being pinched

Quick setting without using a push button

Just push the pliers handle to adjust!

The adjustment procedure to adapt to the workpiece is easy
®
and reliable with the KNIPEX Cobra VDE: place the upper gripping
jaw of the opened pliers on the workpiece, push pliers handle to
close, done!

EAN Adjustment
Article No 003773 mm Pliers Handles Ø Inch Ø mm mm positions g
chrome insulated with multi component grips,
87 26 250 071 95 250 2 50 6 2 3 0
plated VDE tested
207
