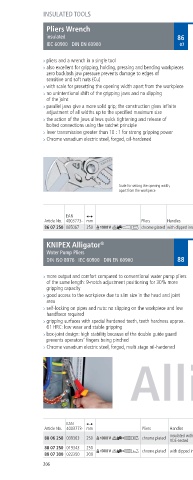

Page 389 - KNIPEX katalógus

INSULATED TOOLS

Pliers Wrench
insulated 86
IEC 60900 DIN EN 60900 07

> pliers and a wrench in a single tool
> also excellent for gripping, holding, pressing and bending workpieces
zero backlash jaw pressure prevents damage to edges of
sensitive and soft nuts (Cu) 86 07 250
> with scale for presetting the opening width apart from the workpiece
> no unintentional shift of the gripping jaws and no slipping
of the joint
> parallel jaws give a more solid grip; the construction gives infinite
adjustment of all widths up to the specified maximum size
> the action of the jaws allows quick tightening and release of
bolted connections using the ratchet principle
> lever transmission greater than 10 : 1 for strong gripping power
> Chrome vanadium electric steel, forged, oil hardened

Scale for setting the opening width,
apart from the workpiece

Dimensions
EAN Adjustment $1 $2 $3
Article No 003773 mm Pliers Handles Inch mm positions mm mm mm g
86 07 250 065067 250 chrome plated with dipped insulation, VDE tested 1 3/ 6 17 8 0 8 0 1 615

KNIPEX Alligator ®
Water Pump Pliers
DIN ISO 8976 IEC 60900 DIN EN 60900 88

> more output and comfort compared to conventional water pump pliers
of the same length: 9 notch adjustment positioning for 30 % more
gripping capacity 88 06 250
> good access to the workpiece due to slim size in the head and joint
area
> self locking on pipes and nuts: no slipping on the workpiece and low
handforce required
> gripping surfaces with special hardened teeth, teeth hardness approx
61 HRC: low wear and stable gripping
> box joint design: high stability because of the double guide guard
prevents operators‘ fingers being pinched
> Chrome vanadium electric steel, forged, multi stage oil hardened 88 07 250

Alligator ®

EAN Adjustment
Article No 003773 mm Pliers Handles Ø Inch Ø mm mm positions g
insulated with multi component grips,
88 06 250 039303 250 chrome plated VDE tested 2 50 6 9 37
88 07 250 0193 3 250 2 50 6 9 20
chrome plated with dipped insulation, VDE tested
88 07 300 022350 300 2 3/ 70 60 9 661
206
