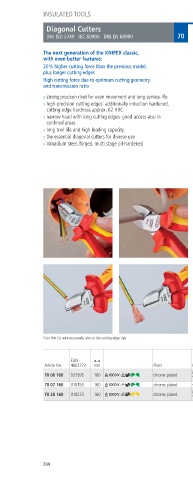

Page 385 - KNIPEX katalógus

INSULATED TOOLS

Diagonal Cutters
DIN ISO 5749 IEC 60900 DIN EN 60900 70 NEW

The next generation of the KNIPEX classic,
with even better features:
JKIJGT EWVVKPI HQTEG VJCP VJG RTGXKQWU OQFGN
plus longer cutting edges
High cutting force due to optimum cutting geometry
and transmission ratio
70 06 160
> strong precison rivet for even movement and long service life
> high precision cutting edges: additionally induction hardened,
cutting edge hardness approx 62 HRC
> narrow head with long cutting edges: good access also in
confined areas
> long tool life and high loading capacity
> the essential diagonal cutters for diverse use
> Vanadium steel, forged, multi stage oil hardened

70 07 160

70 26 160

Cuts thin Cu wire accurately, also at the cutting edge tips

Cutting capacities
EAN
Article No 003773 mm Pliers Handles Ø mm Ø mm Ø mm g
insulated with multi component grips,
70 06 160 021995 160 chrome plated 0 3 0 2 0 216
VDE tested
70 07 160 018155 160 chrome plated with dipped insulation, VDE tested 0 3 0 2 0 227
insulated with multi component grips,
70 26 160 018223 160 chrome plated 0 216
VDE tested

204
