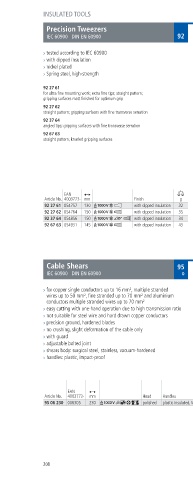

Page 393 - KNIPEX katalógus

INSULATED TOOLS

Precision Tweezers
IEC 60900 DIN EN 60900 92

> tested according to IEC 60900
> with dipped insulation
> nickel plated
92 27 61
> Spring steel, high strength

92 27 61
for ultra fine mounting work; extra fine tips; straight pattern;
gripping surfaces matt finished for optimum grip
92 27 62
straight pattern; gripping surfaces with fine transverse serration 92 27 62
92 37 64
angled tips; gripping surfaces with fine transverse serration
92 67 63
straight pattern; knurled gripping surfaces

92 37 64
45°

EAN
Article No 003773 mm Finish g
92 27 61 05 757 130 with dipped insulation 32
92 27 62 05 76 150 with dipped insulation 35
92 37 64 05 856 150 45° with dipped insulation 3 92 67 63
92 67 63 05 931 1 5 with dipped insulation 3

Cable Shears 95
IEC 60900 DIN EN 60900 0

> for copper single conductors up to 16 mm², multiple stranded
wires up to 50 mm², fine stranded up to 70 mm² and aluminium
conductors multiple stranded wires up to 70 mm²
> easy cutting with one hand operation due to high transmission ratio
> not suitable for steel wire and hard drawn copper conductors
> precision ground, hardened blades
> no crushing, slight deformation of the cable only
> with guard
> adjustable bolted joint 95 06 230
> shears body: surgical steel, stainless, vacuum hardened
> handles: plastic, impact proof

Cutting capacities
EAN
Article No 003773 mm Head Handles Ø mm mm² AWG g
95 06 230 006305 230 polished plastic insulated, VDE tested 16 50 1/0 27

208
