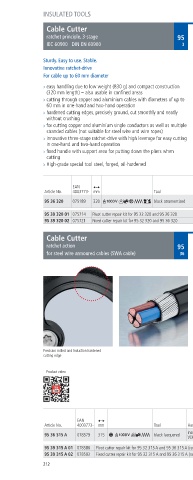

Page 401 - KNIPEX katalógus

INSULATED TOOLS

Cable Cutter
ratchet principle, 3-stage 95
IEC 60900 DIN EN 60900 3

Sturdy. Easy to use. Stable.
+PPQXCVKXG TCVEJGV FTKXG
For cable up to 60 mm diameter
> easy handling due to low weight (830 g) and compact construction
(320 mm length) – also usable in confined areas
> cutting through copper and aluminium cables with diameters of up to 95 36 320
60 mm in one hand and two hand operation
> hardened cutting edges, precisely ground, cut smoothly and neatly
without crushing
> for cutting copper and aluminium single conductors as well as multiple
stranded cables (not suitable for steel wire and wire ropes)
> innovative three stage ratchet drive with high leverage for easy cutting
in one hand and two hand operation
> fixed handle with support area for putting down the pliers when
cutting
> High grade special tool steel, forged, oil hardened

Cutting capacities
EAN
Article No 003773 mm Tool Handles Ø mm mm² MCM g
insulated with multi component grips,
95 36 320 075189 320 black atramentized 60 600 1200 830
VDE tested
95 39 320 01 07571 Pivot cutter repair kit for 95 32 320 and 95 36 320
95 39 320 02 075721 Fixed cutter repair kit for 95 32 320 and 95 36 320

Cable Cutter Cuts through steel wire armoured cables with a diameter of up
ratchet action 95 to 45 mm / 380 mm² (e.g. 4 x 95 mm²) using one or two-handed
for steel wire armoured cables (SWA cable) 36 operation
Sturdy. Easy to use. Stable.

> simple handling due to low weight (800 g) and compact design
(315 mm length) – can also be used in confined areas
> precision ground blades and induction hardened cutting edges cut
smoothly and neatly without crushing
> innovative high leverage three stage ratchet drive
> support area for putting down the pliers when cutting
> not suitable for cutting ACSR cable and wire rope!
> High grade special tool steel, forged, multi stage oil hardened

Precision milled and induction hardened
cutting edge

Product video

95 36 315 A

Cutting capacities
EAN
Article No 003773 mm Tool Handles Ø mm mm² MCM g
insulated with multi component grips,
95 36 315 A 078579 315 black lacquered VDE tested 5 380 750 800

95 39 315 A 01 078586 Pivot cutter repair kit for 95 32 315 A and 95 36 315 A (ratchet action)
95 39 315 A 02 078593 Fixed cutter repair kit for 95 32 315 A and 95 36 315 A (ratchet action)
212
