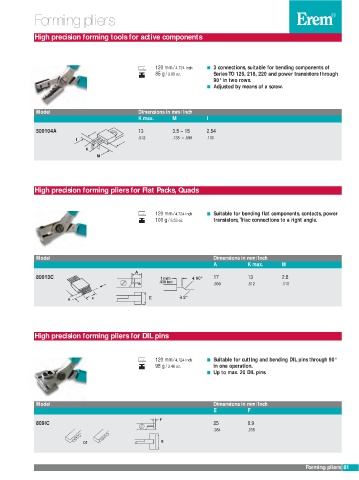

P. 80
Forming pliers
High precision forming tools for active components
120 mm/ 4.724 Inch 3 connections, suitable for bending components of
85 g / 3.00 oz. Series TO 126, 218, 220 and power transistors through
90° in two rows.
Adjusted by means of a screw.
Model Dimensions in mm/Inch
K max. M I
500104A 13 3.5 – 15 2.54
.512 .138 – .590 .100
High precision forming pliers for Flat Packs, Quads
120 mm/4.724 Inch Suitable for bending flat components, contacts, power
100 g / 3.53 oz. transistors, Triac connections to a right angle.
Model Dimensions in mm/Inch
A K max. M
80013C 17 13 2.8
.669 .512 .110
High precision forming pliers for DIL pins
120 mm/4.724 Inch Suitable for cutting and bending DIL pins through 90°
98 g / 3.46 oz. in one operation.
Up to max. 20 DIL pins.
Model Dimensions in mm/Inch
E F
809IC 25 0.9
.984 .035
or
Forming pliers 81
