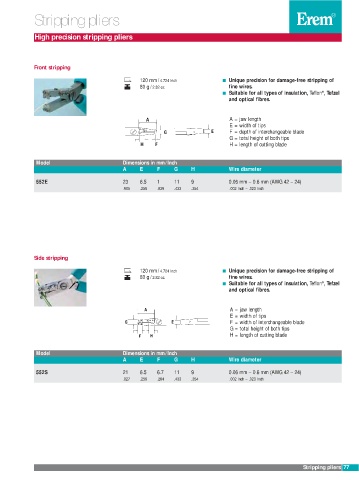

Stripping pliers

High precision stripping pliers

Front stripping
120 mm/ 4.724 Inch Unique precision for damage-free stripping of
80 g / 2.82 oz. fine wires.
®
Suitable for all types of insulation, Teflon , Tefzel
and optical fibres.

A = jaw length
E = width of tips
F = depth of interchangeable blade
G = total height of both tips
H = length of cutting blade

Model Dimensions in mm/Inch
A E F G H Wire diameter

552E 23 6.5 1 11 9 0.06 mm – 0.6 mm (AWG 42 – 24)
.905 .256 .039 .433 .354 .002 Inch – .023 Inch

Side stripping

120 mm/ 4.724 Inch Unique precision for damage-free stripping of
80 g / 2.82 oz. fine wires.
®
Suitable for all types of insulation, Teflon , Tefzel
and optical fibres.

A = jaw length
E = width of tips
F = width of interchangeable blade
G = total height of both tips
H = length of cutting blade

Model Dimensions in mm/Inch
A E F G H Wire diameter
552S 21 6.5 6.7 11 9 0.06 mm – 0.6 mm (AWG 42 – 24)
.827 .256 .264 .433 .354 .002 Inch – .023 Inch

Stripping pliers 77
