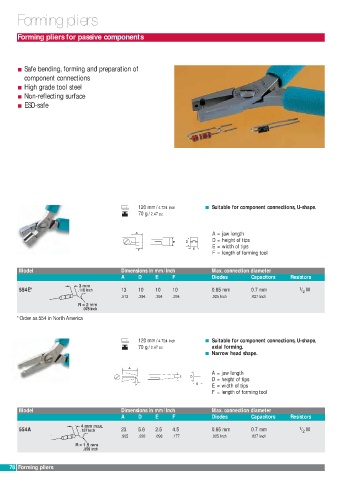

Page 77 - EREM katalógus

Forming pliers

Forming pliers for passive components

Safe bending, forming and preparation of
component connections
High grade tool steel
Non-reflecting surface
ESD-safe

120 mm/ 4.724 Inch Suitable for component connections, U-shape.
70 g / 2.47 oz.

A = jaw length
D = height of tips
E = width of tips
F = length of forming tool

Model Dimensions in mm/Inch Max. connection diameter
A D E F Diodes Capacitors Resistors
554E* 13 10 10 10 0.65 mm 0.7 mm 1 / W
2
.512 .394 .394 .394 .025 Inch .027 Inch

*Order as 554 in North America

120 mm/ 4.724 Inch Suitable for component connections, U-shape,
70 g / 2.47 oz. axial forming.
Narrow head shape.

A = jaw length
D = height of tips
E = width of tips
F = length of forming tool

Model Dimensions in mm/Inch Max. connection diameter
A D E F Diodes Capacitors Resistors
554A 23 5.6 2.5 4.5 0.65 mm 0.7 mm 1 / W
2
.905 .220 .098 .177 .025 Inch .027 Inch

78 Forming pliers
