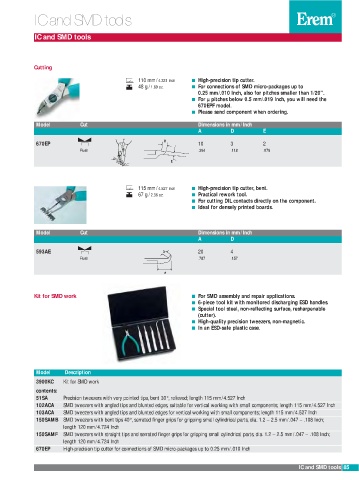

Page 84 - EREM katalógus

IC and SMD tools

IC and SMD tools
IC and SMD tools

Cutting
110 mm/ 4.331 Inch High-precision tip cutter.
48 g / 1.69 oz. For connections of SMD micro-packages up to
0.25 mm/.010 Inch, also for pitches smaller than 1/20”.
For µ pitches below 0.5 mm/.019 Inch, you will need the
670EPF model.
Please send component when ordering.
Model Cut Dimensions in mm/Inch
A D E
670EP 10 3 2
Flush .394 .118 .079

115 mm/ 4.527 Inch High-precision tip cutter, bent.
67 g / 2.36 oz. Practical rework tool.
For cutting DIL contacts directly on the component.
Ideal for densely printed boards.

Model Cut Dimensions in mm/Inch
A D

593AE 20 4
Flush .787 .157

Kit for SMD work For SMD assembly and repair applications.
6-piece tool kit with monitored discharging ESD handles.
Special tool steel, non-reflecting surface, resharpenable
(cutter).
High-quality precision tweezers, non-magnetic.
In an ESD-safe plastic case.

Model Description
3900KC Kit for SMD work
contents:
51SA Precision tweezers with very pointed tips, bent 30°, relieved; length 115 mm/4.527 Inch
102ACA SMD tweezers with angled tips and blunted edges, suitable for vertical working with small components; length 115 mm/4.527 Inch
103ACA SMD tweezers with angled tips and blunted edges for vertical working with small components; length 115 mm/4.527 Inch
150SAMB SMD tweezers with bent tips 40°, serrated finger grips for gripping small cylindrical parts, dia. 1.2 – 2.5 mm/.047 – .108 Inch;
length 120 mm/4.724 Inch
150SAMF SMD tweezers with straight tips and serrated finger grips for gripping small cylindrical parts, dia. 1.2 – 2.5 mm/.047 – .108 Inch;
length 120 mm/4.724 Inch
670EP High-precision tip cutter for connections of SMD micro-packages up to 0.25 mm/.010 Inch

IC and SMD tools 85
