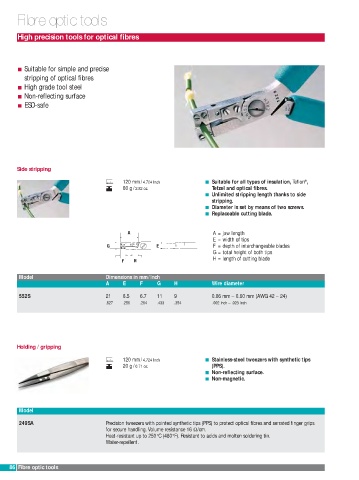

Fibre optic tools

High precision tools for optical fibres

Suitable for simple and precise
stripping of optical fibres
High grade tool steel
Non-reflecting surface
ESD-safe

Side stripping

®
120 mm/ 4.724 Inch Suitable for all types of insulation, Teflon ,
80 g / 2.82 oz. Tefzel and optical fibres.
Unlimited stripping length thanks to side
stripping.
Diameter is set by means of two screws.
Replaceable cutting blade.

A = jaw length
E = width of tips
F = depth of interchangeable blades
G = total height of both tips
H = length of cutting blade

Model Dimensions in mm/Inch
A E F G H Wire diameter

552S 21 6.5 6.7 11 9 0.06 mm – 0.60 mm (AWG 42 – 24)
.827 .256 .264 .433 .354 .002 Inch – .023 Inch

Holding / gripping

120 mm/ 4.724 Inch Stainless-steel tweezers with synthetic tips
20 g / 0.71 oz. (PPS).
Non-reflecting surface.
Non-magnetic.

Model

249SA Precision tweezers with pointed synthetic tips (PPS) to protect optical fibres and serrated finger grips
for secure handling. Volume resistance 16 Ω/cm.
Heat-resistant up to 250°C (480°F). Resistant to acids and molten soldering tin.
Water-repellent.

86 Fibre optic tools
