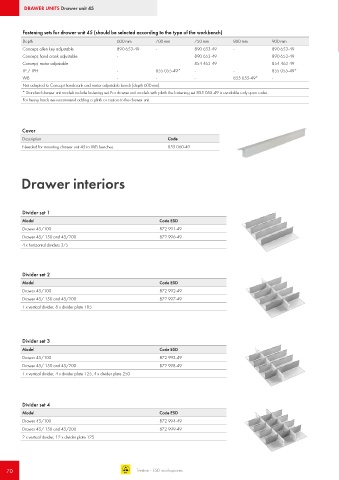

DRAWER UNITS Drawer unit 45

Fastening sets for drawer unit 45 (should be selected according to the type of the workbench)
Depth 600 mm 700 mm 750 mm 800 mm 900 mm
Concept, allen key adjustable 890 653-49 - 890 653-49 - 890 653-49
Concept, hand crank adjustable - 890 653-49 890 653-49
Concept, motor adjustable - - 854 463-49 - 854 463-49
TP / TPH - 855 055-49* - - 855 055-49*
WB - - - 855 055-49* -
Not adapted to Concept handcrank and motor adjustable bench (depth 600 mm).
* Standard drawer unit models include fastening set. For drawer unit models with plinth the fastening set 855 055-49 is available only upon order.
For heavy loads we recommend adding a plinth or castors to the drawer unit.

Cover
Description Code
Needed for mounting drawer unit 45 to WB benches. 855 060-49

Drawer interiors

Divider set 1
Model Code ESD
Drawer 45/100 872 991-49
Drawer 45/ 150 and 45/200 872 996-49
4 x horizontal dividers 375

Divider set 2
Model Code ESD
Drawer 45/100 872 992-49
Drawer 45/ 150 and 45/200 872 997-49
1 x vertical divider, 8 x divider plate 185

Divider set 3
Model Code ESD
Drawer 45/100 872 993-49
Drawer 45/ 150 and 45/200 872 998-49
1 x vertical divider, 4 x divider plate 125, 4 x divider plate 250

Divider set 4
Model Code ESD
Drawer 45/100 872 994-49
Drawer 45/ 150 and 45/200 872 999-49
2 x vertical divider, 12 x divider plate 125
