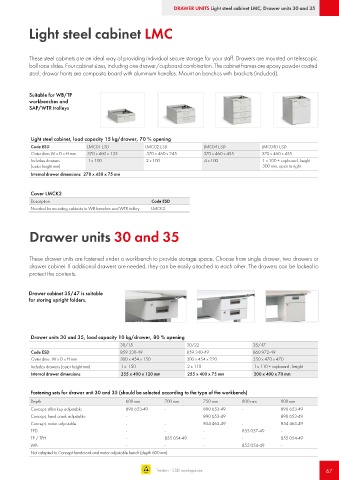

Page 67 - Treston workspaces

DRAWER UNITS Light steel cabinet LMC, Drawer units 30 and 35

Light steel cabinet LMC

These steel cabinets are an ideal way of providing individual secure storage for your staff. Drawers are mounted on telescopic
ball race slides. Four cabinet sizes, including one drawer/cupboard combination. The cabinet frames are epoxy powder coated
steel; drawer fronts are composite board with aluminium handles. Mount on benches with brackets (included).

Suitable for WB/TP
workbenches and
SAP/WTR trolleys

Light steel cabinet, load capacity 15 kg/drawer, 70 % opening
Code ESD LMC01 ESD LMC02 ESD LMC04 ESD LMC04D ESD
Outer dims W x D x H mm 370 x 460 x 135 370 x 460 x 245 370 x 460 x 455 370 x 460 x 455
Includes drawers 1 x 100 2 x 100 4 x 100 1 x 100 + cupboard, height
(outer height mm) 300 mm, open to right
Internal drawer dimensions: 278 x 438 x 75 mm

Cover LMCK2
Description Code ESD
Needed for mounting cabinets to WB benches and WTR trolley. LMCK2

Drawer units 30 and 35

These drawer units are fastened under a workbench to provide storage space. Choose from single drawer, two drawers or
drawer cabinet. If additional drawers are needed, they can be easily attached to each other. The drawers can be locked to
protect the contents.

Drawer cabinet 35/47 is suitable
for storing upright folders.

Drawer units 30 and 35, load capacity 10 kg/drawer, 80 % opening
30/15 30/22 35/47
Code ESD 859 330-49 859 340-49 860 972-49
Outer dims W x D x H mm 300 x 454 x 150 300 x 454 x 220 350 x 470 x 470
Includes drawers (outer height mm) 1 x 150 2 x 110 1 x 110 + cupboard , height
Internal drawer dimensions: 255 x 400 x 120 mm 255 x 400 x 75 mm 300 x 400 x 70 mm

Fastening sets for drawer unit 30 and 35 (should be selected according to the type of the workbench)
Depth 600 mm 700 mm 750 mm 800 mm 900 mm
Concept, allen key adjustable 890 653-49 - 890 653-49 - 890 653-49
Concept, hand crank adjustable - 890 653-49 890 653-49
Concept, motor adjustable - - 854 463-49 - 854 463-49
TED - - - 855 057-49 -
TP / TPH - 855 054-49 - - 855 054-49
WB - - - 855 054-49 -
Not adapted to Concept handcrank and motor adjustable bench (depth 600 mm).
