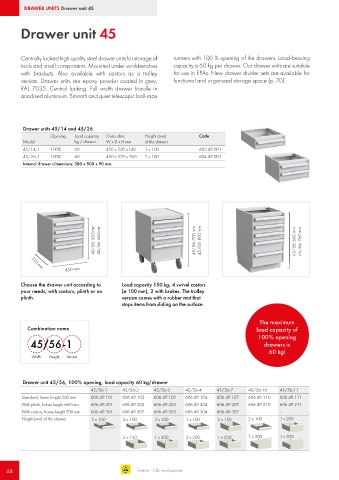

Page 68 - Treston workspaces

DRAWER UNITS Drawer unit 45

Drawer unit 45

Centrally locked high quality steel drawer units for storage of runners with 100 % opening of the drawers. Load-bearing
tools and small components. Mounted under workbenches capacity is 60 kg per drawer. Our drawer units are suitable
with brackets. Also available with castors as a trolley for use in EPAs. New drawer divider sets are available for
version. Drawer units are epoxy powder coated in grey, functional and organized storage space (p. 70).
RAL 7035. Central locking. Full width drawer handle in
anodised aluminium. Smooth and quiet telescopic ball-race

Drawer units 45/14 and 45/26
Opening Load capacity Outer dims Height (mm) Code
Model kg / drawer W x D x H mm of the drawer
45/14-1 100% 60 450 x 520 x140 1 x 100 603 49 001
45/26-1 100% 60 450 x 520 x 260 2 x 100 604 49 001
Internal drawer dimensions: 380 x 500 x 90 mm.

45/56: 560 mm 45/66: 660 mm 45/56: 700 mm 45/66: 800 mm 45/56: 660 mm 45/66: 760 mm

450 mm
520 mm

Choose the drawer unit according to Load capacity 150 kg, 4 swivel castors
your needs; with castors, plinth or no (ø 100 mm), 2 with brakes. The trolley
plinth. version comes with a rubber mat that
stops items from sliding on the surface.

The maximum
Combination name load capacity of
100% opening
45/56-1 drawers is
60 kg!
Width Height Version

Drawer unit 45/56, 100% opening, load capacity 60 kg/drawer
45/56-1 45/56-2 45/56-3 45/56-4 45/56-7 45/56-10 45/56-11
Standard, frame height 560 mm 606 49 101 606 49 102 606 49 103 606 49 104 606 49 107 606 49 110 606 49 111
With plinth, frame height 660 mm 606 49 201 606 49 202 606 49 203 606 49 204 606 49 207 606 49 210 606 49 211
With castors, frame height 700 mm 606 49 301 606 49 302 606 49 303 606 49 304 606 49 307 - -
Height (mm) of the drawer 5 x 100 2 x 100 3 x 100 1 x 100 2 x 150 2 x 100 1 x 200

2 x 150 1 x 200 2 x 200 1 x 200 1 x 300 1 x 300
