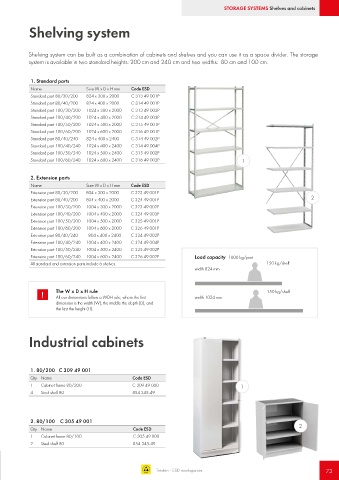

Page 73 - Treston workspaces

STORAGE SYSTEMS Shelves and cabinets

Shelving system

Shelving system can be built as a combination of cabinets and shelves and you can use it as a space divider. The storage
system is available in two standard heights: 200 cm and 240 cm and two widths: 80 cm and 100 cm.

1. Standard parts
Name Size W x D x H mm Code ESD
Standard part 80/30/200 824 x 300 x 2000 C 313 49 001P
Standard part 80/40/200 824 x 400 x 2000 C 314 49 001P
Standard part 100/30/200 1024 x 300 x 2000 C 313 49 002P
Standard part 100/40/200 1024 x 400 x 2000 C 314 49 003P
Standard part 100/50/200 1024 x 500 x 2000 C 315 49 001P
Standard part 100/60/200 1024 x 600 x 2000 C 316 49 001P
Standard part 80/40/240 824 x 400 x 2400 C 314 49 002P
Standard part 100/40/240 1024 x 400 x 2400 C 314 49 004P
Standard part 100/50/240 1024 x 500 x 2400 C 315 49 002P
Standard part 100/60/240 1024 x 600 x 2400 C 316 49 002P 1

2. Extension parts
Name Size W x D x H mm Code ESD
Extension part 80/30/200 804 x 300 x 2000 C 323 49 001P
2
Extension part 80/40/200 804 x 400 x 2000 C 324 49 001P
Extension part 100/30/200 1004 x 300 x 2000 C 323 49 002P
Extension part 100/40/200 1004 x 400 x 2000 C 324 49 003P
Extension part 100/50/200 1004 x 500 x 2000 C 325 49 001P
Extension part 100/60/200 1004 x 600 x 2000 C 326 49 001P
Extension part 80/40/240 804 x 400 x 2400 C 324 49 002P
Extension part 100/40/240 1004 x 400 x 2400 C 324 49 004P
Extension part 100/50/240 1004 x 500 x 2400 C 325 49 002P
Extension part 100/60/240 1004 x 600 x 2400 C 326 49 002P Load capacity 1000 kg/part
All standard and extension parts include 6 shelves. 150 kg/shelf
width 824 mm

! The W x D x H rule width 1024 mm 150 kg/shelf

All our dimensions follow a WDH rule, where the first
dimension is the width (W), the middle the depth (D), and
the last the height (H).

Industrial cabinets

1. 80/200 C 309 49 001
Qty Name Code ESD
1 Cabinet frame 80/200 C 309 49 000 1
4 Steel shelf 80 854 345-49

2. 80/100 C 305 49 001
Qty Name Code ESD 2
1 Cabinet frame 80/100 C 305 49 000
2 Steel shelf 80 854 345-49

Treston - ESD workspaces 73
