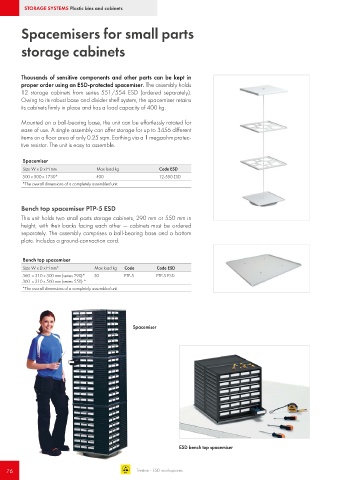

Page 76 - Treston workspaces

STORAGE SYSTEMS Plastic bins and cabinets

Spacemisers for small parts

storage cabinets

Thousands of sensitive components and other parts can be kept in
proper order using an ESD-protected spacemiser. The assembly holds
12 storage cabinets from series 551/554 ESD (ordered separately).
Owing to its robust base and divider shelf system, the spacemiser retains
its cabinets firmly in place and has a load capacity of 400 kg.

Mounted on a ball-bearing base, the unit can be effortlessly rotated for
ease of use. A single assembly can offer storage for up to 3456 different
items on a floor area of only 0.25 sqm. Earthing via a 1 megaohm protec-
tive resistor. The unit is easy to assemble.

Spacemiser
Size W x D x H mm Max load kg Code ESD
500 x 500 x 1730* 400 12-550 ESD
*The overall dimensions of a completely assembled unit.

Bench top spacemiser PTP-5 ESD
This unit holds two small parts storage cabinets, 290 mm or 550 mm in
height, with their backs facing each other — cabinets must be ordered
separately. The assembly comprises a ball-bearing base and a bottom
plate. Includes a ground-connection cord.

Bench top spacemiser
Size W x D x H mm* Max load kg Code Code ESD
360 x 310 x 300 mm (series 290)* 50 PTP-5 PTP-5 ESD
360 x 310 x 560 mm (series 550) *
*The overall dimensions of a completely assembled unit.

Spacemiser

ESD bench top spacemiser
