STORAGE SYSTEMS Shelves and cabinets

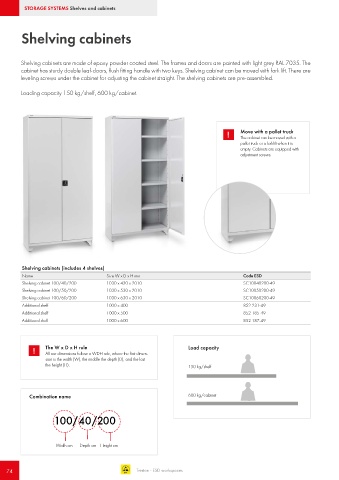

         Shelving cabinets





        Shelving cabinets are made of epoxy powder coated steel. The frames and doors are painted with light grey RAL 7035. The
        cabinet has sturdy double leaf-doors, flush fitting handle with two keys. Shelving cabinet can be moved with fork lift. There are
        leveling screws under the cabinet for adjusting the cabinet straight. The shelving cabinets are pre-assembled.


        Loading capacity 150 kg/shelf, 600 kg/cabinet.






                                                                                 !   Move with a pallet truck
                                                                                     The cabinet can be moved with a
                                                                                     pallet truck or a forklift when it is
                                                                                     empty. Cabinets are equipped with
                                                                                     adjustment screws.























         Shelving cabinets (includes 4 shelves)
         Name                         Size W x D x H mm                               Code ESD
         Shelving cabinet 100/40/200  1030 x 430 x 2010                               SC10040200-49
         Shelving cabinet 100/50/200   1030 x 530 x 2010                              SC10050200-49
         Shelving cabinet 100/60/200   1030 x 630 x 2010                              SC10060200-49
         Additional shelf             1000 x 400                                      852 231-49
         Additional shelf             1000 x 500                                      852 185-49
         Additional shelf             1000 x 600                                      852 187-49




             !   The W x D x H rule                                Load capacity
                 All our dimensions follow a WDH rule, where the first dimen-
                 sion is the width (W), the middle the depth (D), and the last
                 the height (H).                                   150 kg/shelf





           Combination name                                        600 kg/cabinet



                    100/40/200




                                    Width cm       Depth cm    Height cm
