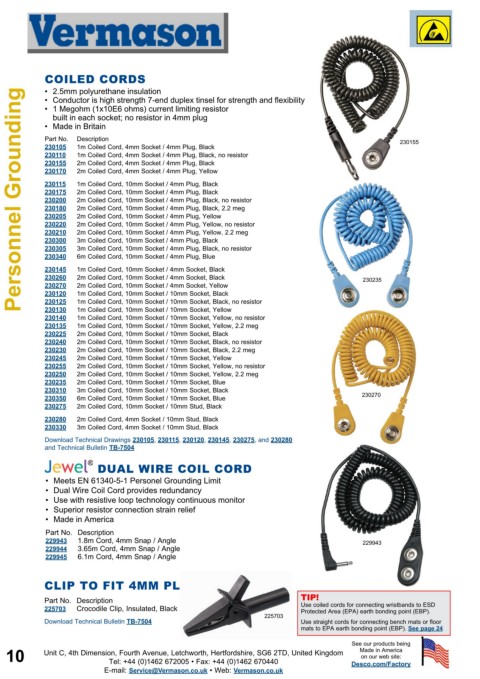

Page 10 - VERMASON ESD katalógus

COILED CORDS
• 2.5mm polyurethane insulation
Personnel Grounding
• Conductor is high strength 7-end duplex tinsel for strength and flexibility
• 1 Megohm (1x10E6 ohms) current limiting resistor
built in each socket; no resistor in 4mm plug
• Made in Britain
Part No. Description 230155
230105 1m Coiled Cord, 4mm Socket / 4mm Plug, Black
230110 1m Coiled Cord, 4mm Socket / 4mm Plug, Black, no resistor
230155 2m Coiled Cord, 4mm Socket / 4mm Plug, Black
230170 2m Coiled Cord, 4mm Socket / 4mm Plug, Yellow
230115 1m Coiled Cord, 10mm Socket / 4mm Plug, Black
230175 2m Coiled Cord, 10mm Socket / 4mm Plug, Black
230200 2m Coiled Cord, 10mm Socket / 4mm Plug, Black, no resistor
230180 2m Coiled Cord, 10mm Socket / 4mm Plug, Black, 2.2 meg
230205 2m Coiled Cord, 10mm Socket / 4mm Plug, Yellow
230220 2m Coiled Cord, 10mm Socket / 4mm Plug, Yellow, no resistor
230210 2m Coiled Cord, 10mm Socket / 4mm Plug, Yellow, 2.2 meg
230300 3m Coiled Cord, 10mm Socket / 4mm Plug, Black
230305 3m Coiled Cord, 10mm Socket / 4mm Plug, Black, no resistor
230340 6m Coiled Cord, 10mm Socket / 4mm Plug, Blue
230145 1m Coiled Cord, 10mm Socket / 4mm Socket, Black
230260 2m Coiled Cord, 10mm Socket / 4mm Socket, Black 230235
230270 2m Coiled Cord, 10mm Socket / 4mm Socket, Yellow
230120 1m Coiled Cord, 10mm Socket / 10mm Socket, Black
230125 1m Coiled Cord, 10mm Socket / 10mm Socket, Black, no resistor
230130 1m Coiled Cord, 10mm Socket / 10mm Socket, Yellow
230140 1m Coiled Cord, 10mm Socket / 10mm Socket, Yellow, no resistor
230135 1m Coiled Cord, 10mm Socket / 10mm Socket, Yellow, 2.2 meg
230225 2m Coiled Cord, 10mm Socket / 10mm Socket, Black
230240 2m Coiled Cord, 10mm Socket / 10mm Socket, Black, no resistor
230230 2m Coiled Cord, 10mm Socket / 10mm Socket, Black, 2.2 meg
230245 2m Coiled Cord, 10mm Socket / 10mm Socket, Yellow
230255 2m Coiled Cord, 10mm Socket / 10mm Socket, Yellow, no resistor
230250 2m Coiled Cord, 10mm Socket / 10mm Socket, Yellow, 2.2 meg
230235 2m Coiled Cord, 10mm Socket / 10mm Socket, Blue
230310 3m Coiled Cord, 10mm Socket / 10mm Socket, Black
230350 6m Coiled Cord, 10mm Socket / 10mm Socket, Blue 230270
230275 2m Coiled Cord, 10mm Socket / 10mm Stud, Black
230280 2m Coiled Cord, 4mm Socket / 10mm Stud, Black
230330 3m Coiled Cord, 4mm Socket / 10mm Stud, Black
Download Technical Drawings 230105, 230115, 230120, 230145, 230275, and 230280
and Technical Bulletin TB-7504
DUAL WIRE COIL CORD

• Meets EN 61340-5-1 Personel Grounding Limit
• Dual Wire Coil Cord provides redundancy
• Use with resistive loop technology continuous monitor
• Superior resistor connection strain relief
• Made in America
Part No. Description
229943 1.8m Cord, 4mm Snap / Angle 229943
229944 3.65m Cord, 4mm Snap / Angle
229945 6.1m Cord, 4mm Snap / Angle

CLIP TO FIT 4MM PLUG
Part No. Description TIP!
225703 Crocodile Clip, Insulated, Black Use coiled cords for connecting wristbands to ESD
Protected Area (EPA) earth bonding point (EBP).
225703
Download Technical Bulletin TB-7504 Use straight cords for connecting bench mats or floor
mats to EPA earth bonding point (EBP). See page 24
