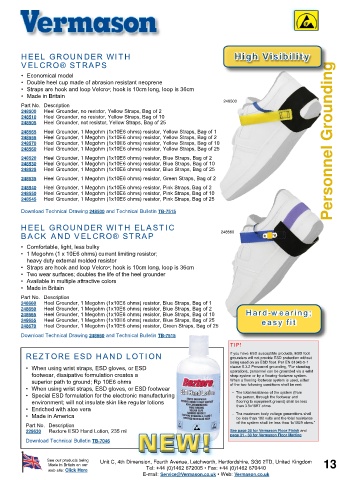

Page 13 - VERMASON ESD katalógus

HEEL GROUNDER WITH High Visibility
VELCRO® STRAPS

• Economical model
• Double heel cup made of abrasion resistant neoprene
• Straps are hook and loop Velcro ; hook is 10cm long, loop is 36cm
®
• Made in Britain
248500
Part No. Description
248500 Heel Grounder, no resistor, Yellow Straps, Bag of 2
248510 Heel Grounder, no resistor, Yellow Straps, Bag of 10
248505 Heel Grounder, not resistor, Yellow Straps, Bag of 25
248565 Heel Grounder, 1 Megohm (1x10E6 ohms) resistor, Yellow Straps, Bag of 1
248555 Heel Grounder, 1 Megohm (1x10E6 ohms) resistor, Yellow Straps, Bag of 2
248570 Heel Grounder, 1 Megohm (1x10E6 ohms) resistor, Yellow Straps, Bag of 10 Personnel Grounding
248560 Heel Grounder, 1 Megohm (1x10E6 ohms) resistor, Yellow Straps, Bag of 25
248520 Heel Grounder, 1 Megohm (1x10E6 ohms) resistor, Blue Straps, Bag of 2
248530 Heel Grounder, 1 Megohm (1x10E6 ohms) resistor, Blue Straps, Bag of 10
248525 Heel Grounder, 1 Megohm (1x10E6 ohms) resistor, Blue Straps, Bag of 25
248535 Heel Grounder, 1 Megohm (1x10E6 ohms) resistor, Green Straps, Bag of 2
248540 Heel Grounder, 1 Megohm (1x10E6 ohms) resistor, Pink Straps, Bag of 2
248550 Heel Grounder, 1 Megohm (1x10E6 ohms) resistor, Pink Straps, Bag of 10
248545 Heel Grounder, 1 Megohm (1x10E6 ohms) resistor, Pink Straps, Bag of 25

Download Technical Drawing 248500 and Technical Bulletin TB-7515

HEEL GROUNDER WITH ELASTIC
BACK AND VELCRO® STRAP 248660

• Comfortable, light, less bulky
• 1 Megohm (1 x 10E6 ohms) current limiting resistor;
heavy duty external molded resistor
• Straps are hook and loop Velcro ; hook is 10cm long, loop is 36cm
®
• Two wear surfaces; doubles the life of the heel grounder
• Available in multiple attractive colors
• Made in Britain
Part No. Description
248660 Heel Grounder, 1 Megohm (1x10E6 ohms) resistor, Blue Straps, Bag of 1
248650 Heel Grounder, 1 Megohm (1x10E6 ohms) resistor, Blue Straps, Bag of 2
248665 Heel Grounder, 1 Megohm (1x10E6 ohms) resistor, Blue Straps, Bag of 10 Hard-wearing;
248655 Heel Grounder, 1 Megohm (1x10E6 ohms) resistor, Blue Straps, Bag of 25 easy fit
248670 Heel Grounder, 1 Megohm (1x10E6 ohms) resistor, Green Straps, Bag of 25
Download Technical Drawing 248660 and Technical Bulletin TB-7515
TIP!
REZTORE ESD HAND LOTION If you have ESD susceptible products, ESD foot
grounders will not provide ESD protection without
being used on an ESD floor. Per EN 61340-5-1
• When using wrist straps, ESD gloves, or ESD clause 5.3.2 Personnel grounding, “For standing
operations, personnel can be grounded via a wrist
footwear, dissipative formulation creates a strap system or by a flooring-footwear system.
superior path to ground; Rp 10E6 ohms When a flooring-footwear system is used, either
• When using wrist straps, ESD gloves, or ESD footwear of the two following conditions shall be met:
• Special ESD formulation for the electronic manufacturing - The total resistance of the system (from
the person, through the footwear and
environment; will not insulate skin like regular lotions flooring to equipment ground) shall be less
• Enriched with aloe vera than 3.5x10E7 ohms
• Made in America - The maximum body voltage generations shall
be less than 100 volts and the total resistance
Part No. Description of the system shall be less than 1x10E9 ohms.”
229630 Reztore ESD Hand Lotion, 235 ml See page 30 for Vermason Floor Finish and
page 31 - 33 for Vermason Floor Matting
Download Technical Bulletin TB-7046
